SCHILLER Truescope Series Patient Monitor

Key Features & Benefits (across the series):

• Crystal-Clear Touchscreen Displays: Experience superior visibility and intuitive operation with high-resolution color TFT LCD touchscreen displays, ranging from compact 8-inch models to expansive 22-inch screens.
• Comprehensive Vital Sign Monitoring:
  • ECG & HR: Accurate 3/5 lead ECG monitoring with optional 7-channel or 12-lead display for in-depth cardiac assessment.
  • NIBP: Reliable Non-Invasive Blood Pressure measurements.
  • SpO2: Precise Digital SpO2 (Pulse Oximetry) with options for advanced Nellcor/Masimo technology for enhanced perfusion indication.
  • TEMP: Core Temperature monitoring, with optional dual temperature capabilities.
  • RESP: Respiratory Rate monitoring.
• Advanced Analysis & Software:
  • ST, QT & Arrhythmia Analysis: Detect and analyze critical cardiac events with advanced ST, QT, and Arrhythmia analysis capabilities.
  • OXY CRG Software: Specialized software for cardiorespiratory monitoring.
  • Extensive Calculations: Built-in software for Drug Dosage, Hemodynamic, Nephridium (Renal Profile), Ventilation, and Oxygenation calculations.
  • Advanced Tools (P-Series): Includes Respiratory Mechanics with FV Loop, Early Warning Score (EWS), Glasgow Coma Scale (GCS), Sepsis View, and Balance of Anesthesia (BOA) for high-end units.
• Flexible & Expandable:
  • Modular Design (TRUSCOPE ultra & P-Series): Customize your monitor with modular slots for optional upgrades like Dual IBP, EtCO2, Multigas, Cardiac Output, EEG, BIS, NMT, and more.
  • Multiple Display Formats: Choose from various screen configurations, including up to 10 simultaneous waveform displays.
• Robust Data Management:
  • Extensive Memory: Store up to 168 hours of graphical and tabular trends, 1000 NIBP measurements, and 128 ARR & Alarm events. High-end units offer even larger capacities, including 180 hours trend data, 3000 parameter alarm events, and 72 hours holographic waveforms.
  • Data Storage: SD card facility for convenient data storage.
• Seamless Connectivity:
  • Central Station Connectivity: Wired connectivity is standard, with optional Wi-Fi modules for wireless data transmission to Central Nursing Stations.
  • External Video Output: VGA output for external display.
  • Network Integration (P-Series): Advanced seamless network connection with EMR and HIS systems.
• Portable & Durable Options:
  • TRUSCOPE touch mini: Compact and portable design with concealed handles, 8-inch touchscreen, and up to 6 hours of battery backup, ideal for mobile applications.
  • TRUSCOPE P1 (Integrated Transport Monitor): A 5.5" touchscreen with built-in 8 hours battery backup, integrated into the P-series high-end monitors for seamless transport.
  • Long Battery Life: Various models offer robust battery backup, from 4 hours to over 8 hours depending on configuration.

Models Available:

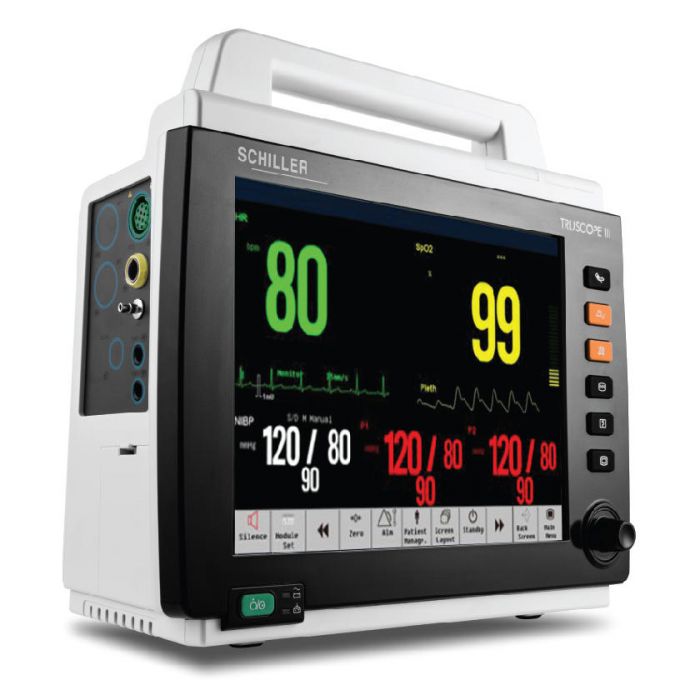

• TRUSCOPE III: 12.1" touchscreen Multi-utility monitor.

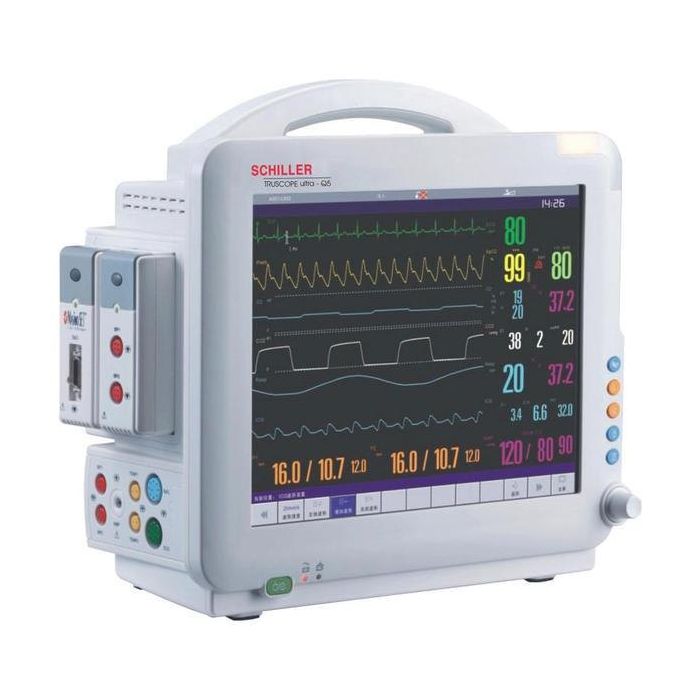

• TRUSCOPE ultra series (Q7, Q5): Modular Patient Monitors with 15" and 12.1" touchscreen displays.

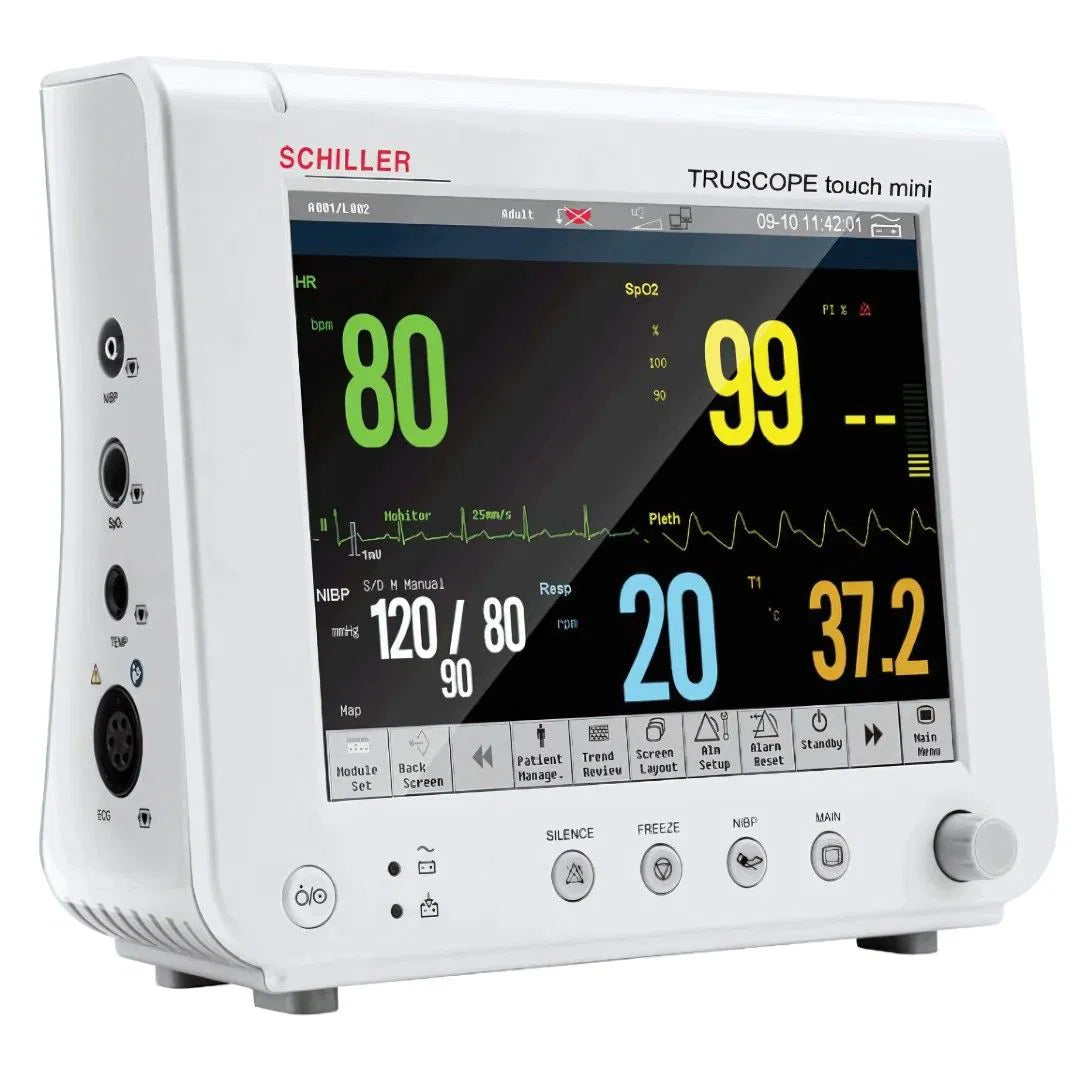

• TRUSCOPE touch mini: Portable Multi-para Patient Monitor with an 8" touchscreen.

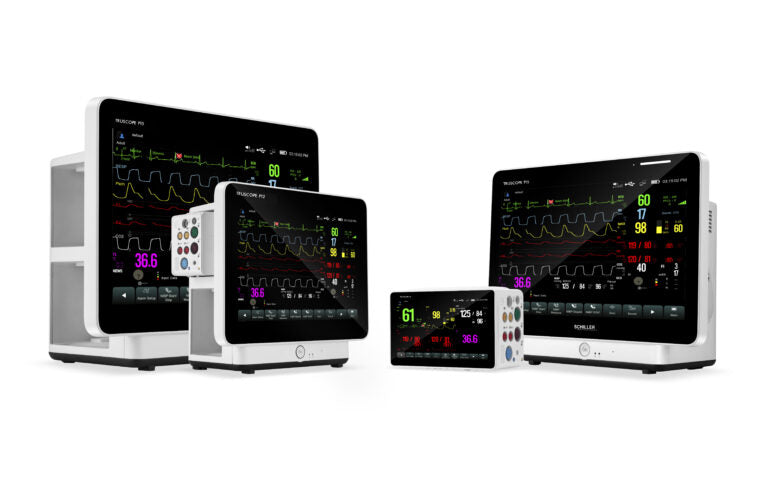

• TRUSCOPE P Series (P12, P15, P18, P22): High-End Modular Patient Monitors with screen sizes from 12.1" to 22".
• OXYWAVE: Desktop Pulse Oximeter with precise Nellcor Technology.
