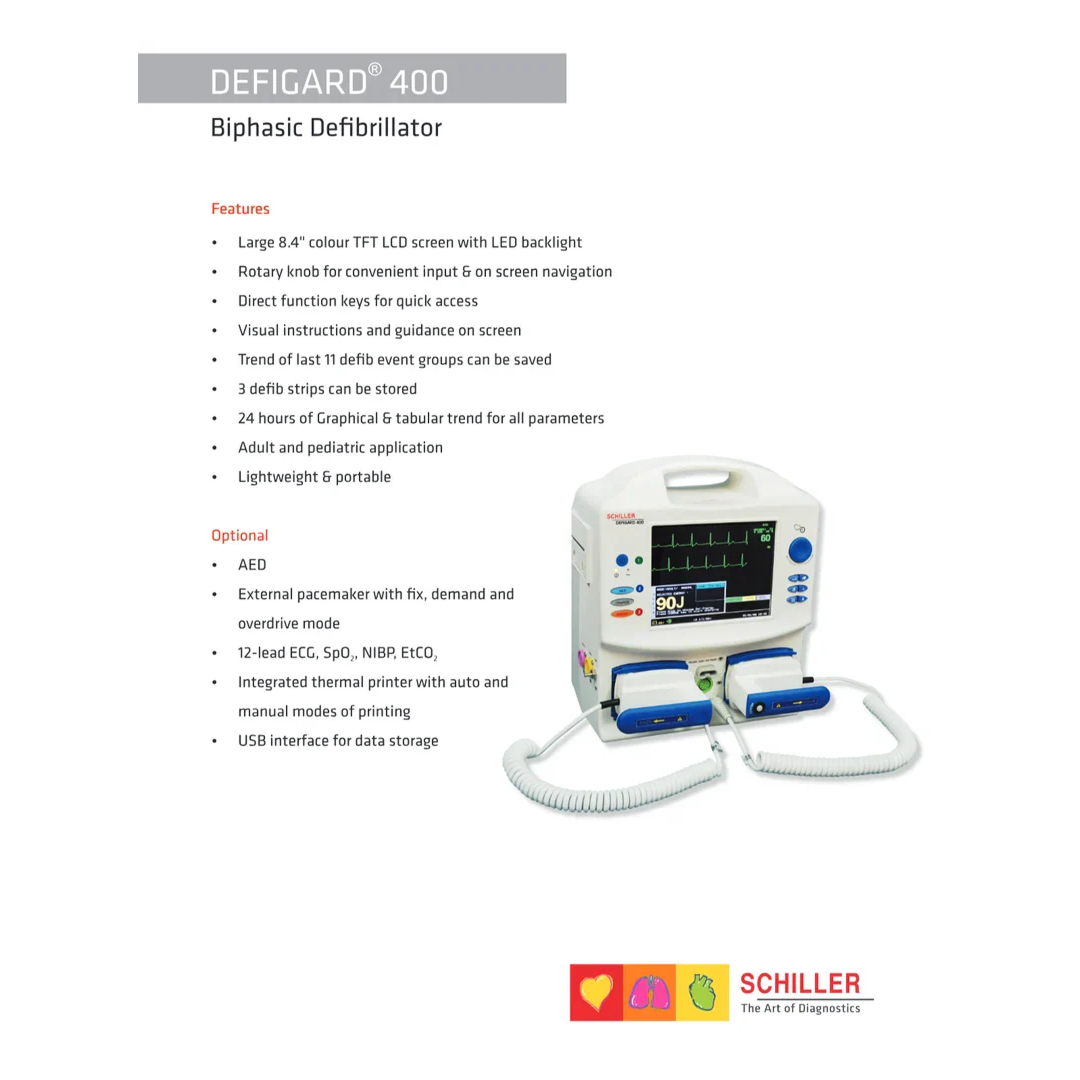

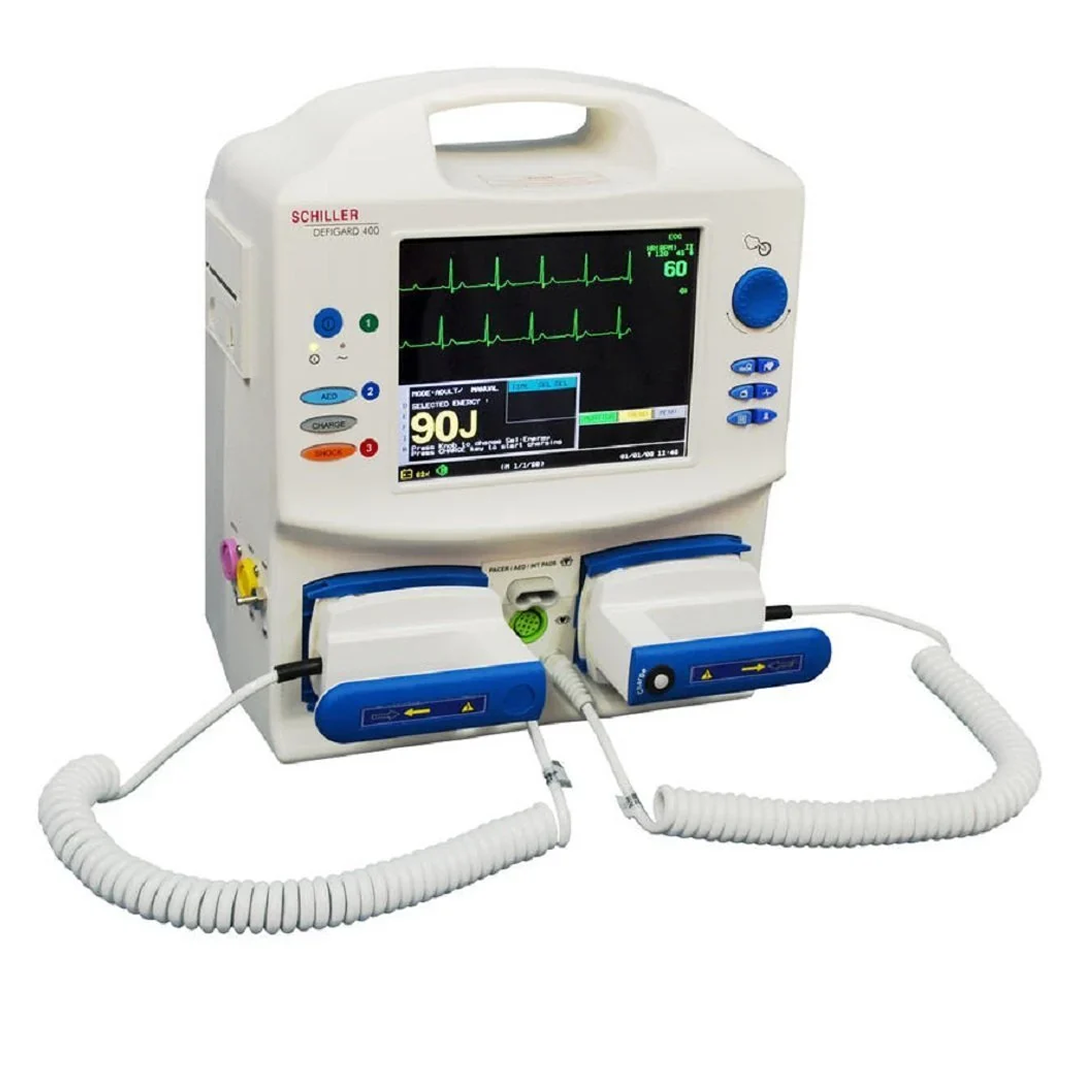

SCHILLER Defigard 400 Biphasic Defibrillator

Key Features for Confident and Efficient Resuscitation:

• Vivid Colour TFT Display: Equipped with a large, bright 10.1" or 8.4" color TFT LCD screen with LED backlight, ensuring exceptional clarity for all vital parameters, waveforms, and on-screen instructions.
• Intuitive Control: Features direct function keys and a convenient rotary knob for quick mode selection and easy, confident operation, even in high-stress situations.
• On-Screen Guidance: Provides visual instructions and guidelines directly on the screen to assist users through critical procedures.
• Comprehensive Data Storage: Records the last 50 defibrillation events and offers 72 hours of tabular trend data. Also saves the trend of the last 11 defib event groups and stores 3 defib strips. All parameters are stored for 24 hours in tabular and graphical formats.
• Extended Battery Performance: Rechargeable, sealed lead acid battery provides 2–3 hours of continuous monitoring and over 80 shocks at 200J energy, or more than 100 shocks at 200J and over 75 at 360J. Battery and mains charge status is indicated on display.
• Compact, Lightweight & Portable: Weighing approximately 6.6 kg (without options) or ~8 kg, its ergonomic design ensures easy transport and deployment across various emergency environments.
• Rapid Charging: Charges to 200J in approximately 5 seconds and to 360J in about 9 seconds.
• Wide Impedance Range: Patient impedance range of 25–250 ohms ensures effective shock delivery across a broad patient demographic.

Versatile Operation Modes & Optional Enhancements for Comprehensive Care:

• AED (Automated External Defibrillation) Mode: Simplifies operation for non-expert users with automated rhythm analysis, voice, and visual prompts to guide the user.
• External Pacemaker: Offers non-invasive pacing with fixed, demand, and overdrive modes for bradycardia support.
• Manual Defibrillation: Provides energy levels ranging from 1J up to 360J (optional) via reusable adult and pediatric hard paddles, with a truncated biphasic impedance-compensated waveform.
• Advanced ECG & Arrhythmia Detection: Features 12-channel ECG with interpretation and arrhythmia detection for detailed cardiac assessment. Includes standard 3-lead or paddle ECG.
• Multi-Parameter Monitoring: Expand capabilities with optional SpO₂ (Digital/Nellcor), NIBP, Mainstream/Sidestream EtCO₂, Respiration, Dual IBP, and Dual Temperature.
• Real CPR Feedback: Provides real-time guidance to optimize the quality of cardiopulmonary resuscitation.
• Integrated Thermal Printer: Enables immediate printouts of critical patient data and waveforms. Supports auto printout on defibrillator usage.
• Seamless Connectivity: Includes USB interface for data storage and a LAN interface for connection to Central Monitoring Systems (CNS).
