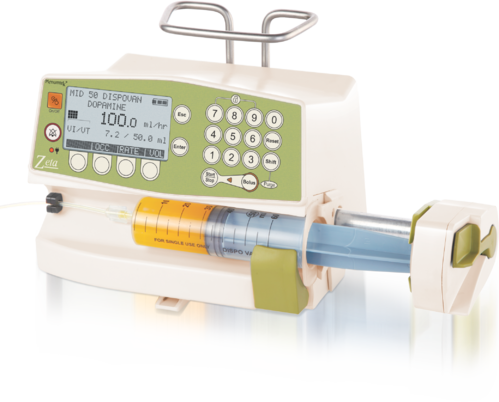

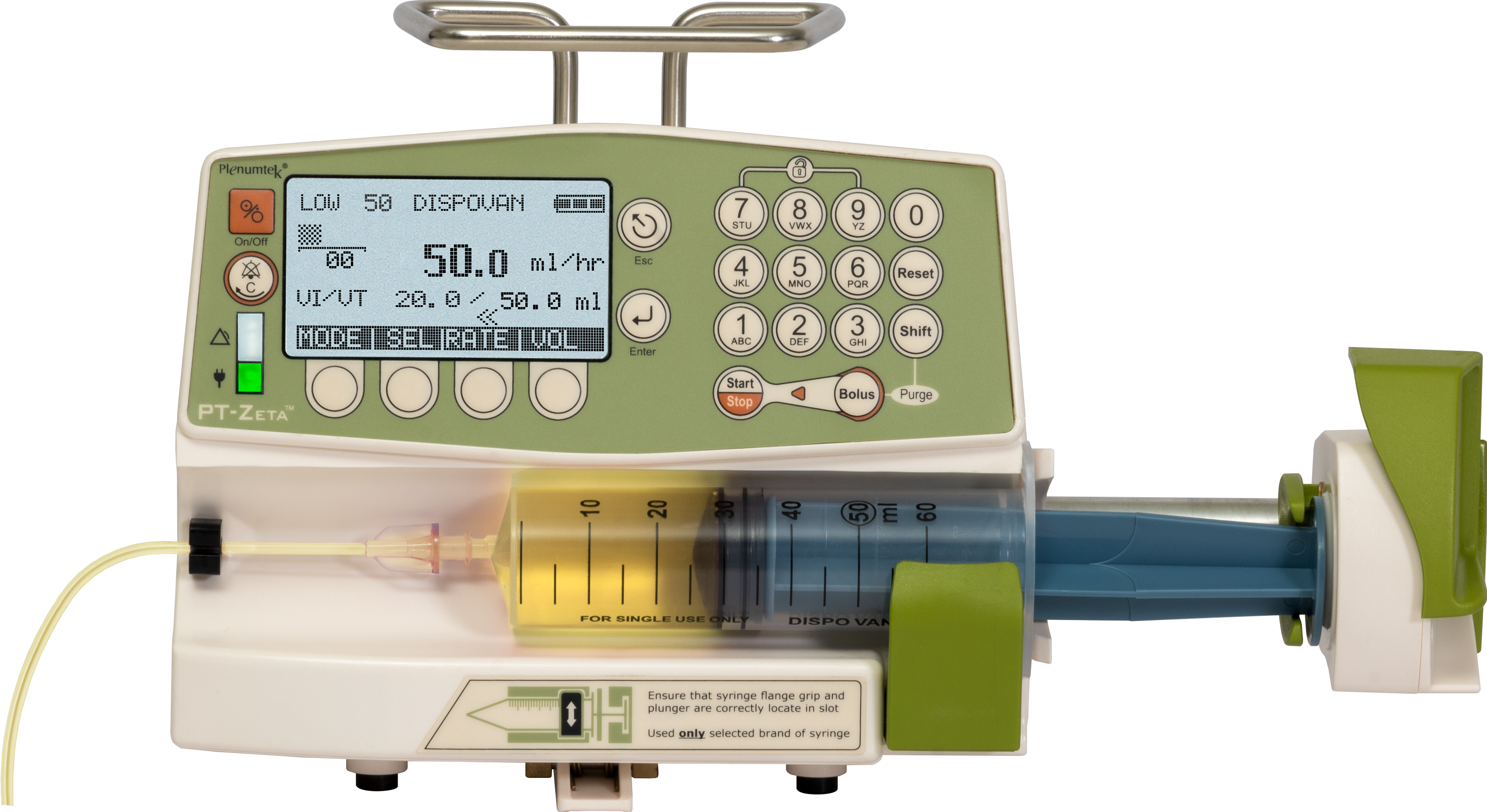

PLENUMTEK Zeta Syringe Pump - Intelligent Precision for IV & IA Infusion

PLENUMTEK Zeta Syringe Pump - Intelligent Precision for IV & IA Infusion

Optimize your medical practice with the PLENUMTEK Zeta Syringe Pump, a cutting-edge, self-regulated, and volume-controlled device designed for highly accurate intravenous and intra-arterial fluid delivery. This portable, front-loading syringe infusion pump combines advanced technology with user-centric design, making it an indispensable tool across various clinical environments. Its lightweight and ergonomic build, coupled with comprehensive safety features, ensures superior performance and patient well-being.

Key Features & Benefits:

• Front-Loading Mechanism: Facilitates effortless and rapid syringe insertion, enhancing efficiency during critical moments.
• Capacitive Touch Screen Keypad: Offers a highly responsive and intuitive interface for seamless control and programming.
• Graphic LCD Monochrome Display (66mm x 33mm): Provides clear visibility of all vital infusion parameters, including occlusion level, syringe size and brand, drug name, set flow rate, infused volume, battery life, and comprehensive alarms.
• Ergonomic & Leak-Proof Design: Engineered for both user comfort and a sterile environment, preventing any fluid spillage.
• Lightweight & Portable: Weighing just 1.8 kg, the Zeta Syringe Pump is easily transportable, ideal for diverse hospital and clinical settings.
• Versatile Mounting: Features a robust clamp for both horizontal and vertical mounting on IV poles, offering flexible placement options.
• Stackable Design: Allows for interlocking multiple units, enabling efficient multi-channel infusions and maximizing space in crowded areas.
• High Precision Infusion: Ensures accurate and consistent delivery of medications, crucial for patient safety and therapeutic efficacy.
• Comprehensive Alarm System: Equipped with audible and visual alarms for critical conditions such as occlusion, infusion end, KVO/KOR (Keep Vein Open/Keep Open Rate), and syringe empty, enhancing patient safety.
• Keypad Locking: Prevents accidental changes to infusion parameters, ensuring continuous and safe operation.

Technical Specifications:

• Product Type: Front Loading Syringe Infusion Pump
• Pumping Mechanism: Lead Screw Mechanism
• Dimensions: 130mm (W) × 183mm (L) × 115mm (H)
• Weight: 1.8 Kgs
• Display: 66mm x 33mm Graphic LCD Monochrome
• Keypad: Capacitive Touch Screen Keypad
• Fixation: Horizontal & Vertical Mounting
• Power Source: 110/220 VCA (+/-20%), 50/60 Hz, 12 VA
• Battery: 8.4 Rechargeable NiMh (Capacity minimum 3 hours at 5ml/hr)
• Moisture Protection: IP24 (Splash Proof) as per IEC 60529
• Electrical Safety: Class II, Type CF
• Conformity Standards: IEC 60601-1 & IEC 60601-2-24
• Quality Management: ISO 9001:2008 & ISO 13485:2003 Certified

Plenumtek - Advancing Healthcare with Precision and Reliability.
