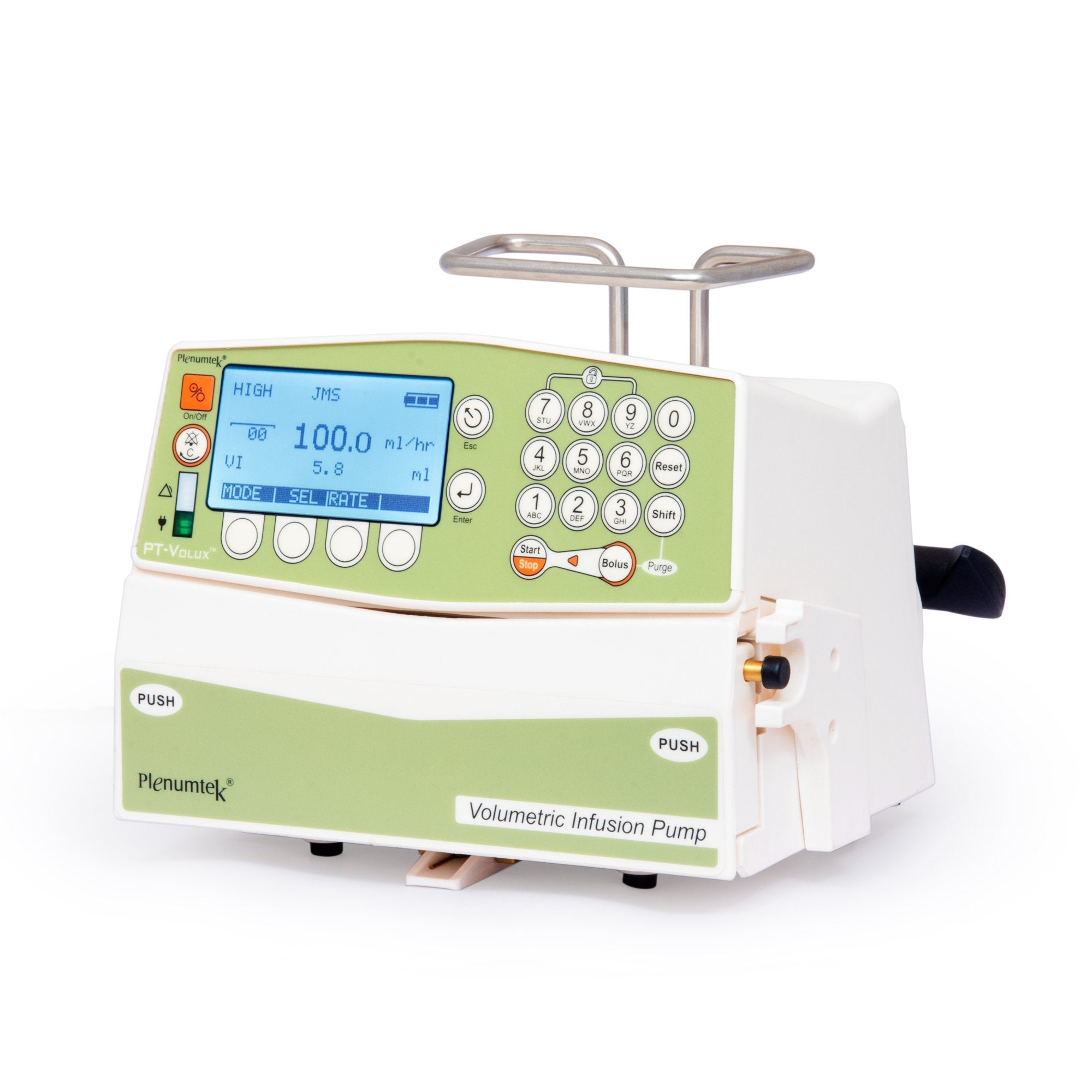

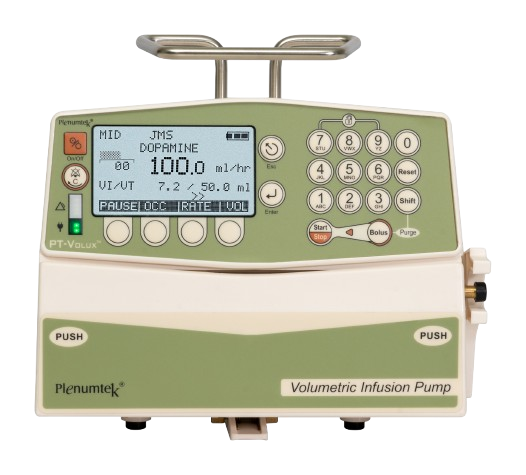

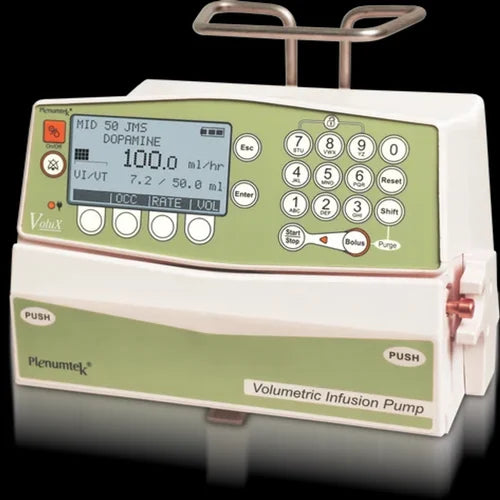

Plenumtek PT-Volux Volumetric Infusion Pump: Precision & Portability for Medical Professionals

Plenumtek PT-Volux Volumetric Infusion Pump - Precision & Portability for Medical Professionals

Elevate your medical practice with the Plenumtek PT-Volux, a state-of-the-art digital and self-regulated volumetric infusion pump designed for both intravenous and intra-arterial infusions. Engineered for precision and ease of use, the PT-Volux combines lightweight design with robust features, making it an essential tool for modern healthcare environments.

Key Features:

• Lightweight & Portable: Weighing just 2.3 kg, the PT-Volux is designed for easy transport and maneuverability.
• Ergonomic & Leak-Proof Design: Ensures reliable and safe operation.
• Versatile Mounting: Supports both vertical and horizontal mounting configurations.
• Clear LCD Display: A 72 mm x 41 mm graphic LCD monochrome display provides clear visibility of all essential parameters, including occlusion level, IV set brand, drug name, flow rate, infused volume, battery life, alarms, and indicators.
• Multiple Infusion Modes: Offers comprehensive infusion control with Rate mode (ml/hr), Volume Time mode, Volume Target mode, and Body Weight mode, allowing for precise drug delivery based on patient needs.
• Advanced Pressure Management: Features variable or 3 pre-set pressure levels (100-900 mmHg with 50 mmHg increments) and a graphic representation of pressure limits for enhanced safety. The anti-bolus system significantly reduces bolus after occlusion release.
• Extensive IV Line Compatibility: Compatible with 20 IV set brands, including BBRaun, JMS, Romson, and Polymed, with the provision to add 16 more.
• Comprehensive Safety Features: Includes ultrasonic air bubble detection (50µl bubble size), free-flow protection with automatic safety clip, and keypad locking to prevent accidental parameter changes.
• Long-Lasting Battery: Equipped with a 7.2 VDC rechargeable NiMh battery, offering up to 8 hours of operation at 25 ml/hr. Battery status is displayed in bars or hours and minutes, with an auto-adjusting display brightness for power saving.
• Detailed Data Logging: Stores 2000 data log events in real-time for comprehensive record-keeping.
• Drug Library: Pre-set with 42 drugs and the capacity to add up to 1958 more, facilitating efficient drug labeling.
• Quality Assured: Manufactured under ISO 9001:2015 and ISO 13485:2016 quality standards, with IP24 splash-proof rating and Class II, Type CF Defibrillator Proof electrical safety.

Technical Specifications at a Glance:

• Pumping Mechanism: Linear Peristaltic Pumping System.
• Dimensions: 200 mm (W) x 205 mm (L) x 175 mm (H).
• Flow Rate: 0.1 to 1200 ml/hr (0.1 ml/hr increment).
• Bolus Rate: Up to 1200 ml/hr.
• Operating Temperature: 05 to 40°C.
• Communication: RS232 port.

The Plenumtek PT-Volux is the ideal infusion pump for medical professionals seeking accuracy, reliability, and advanced features in a compact and user-friendly design.
