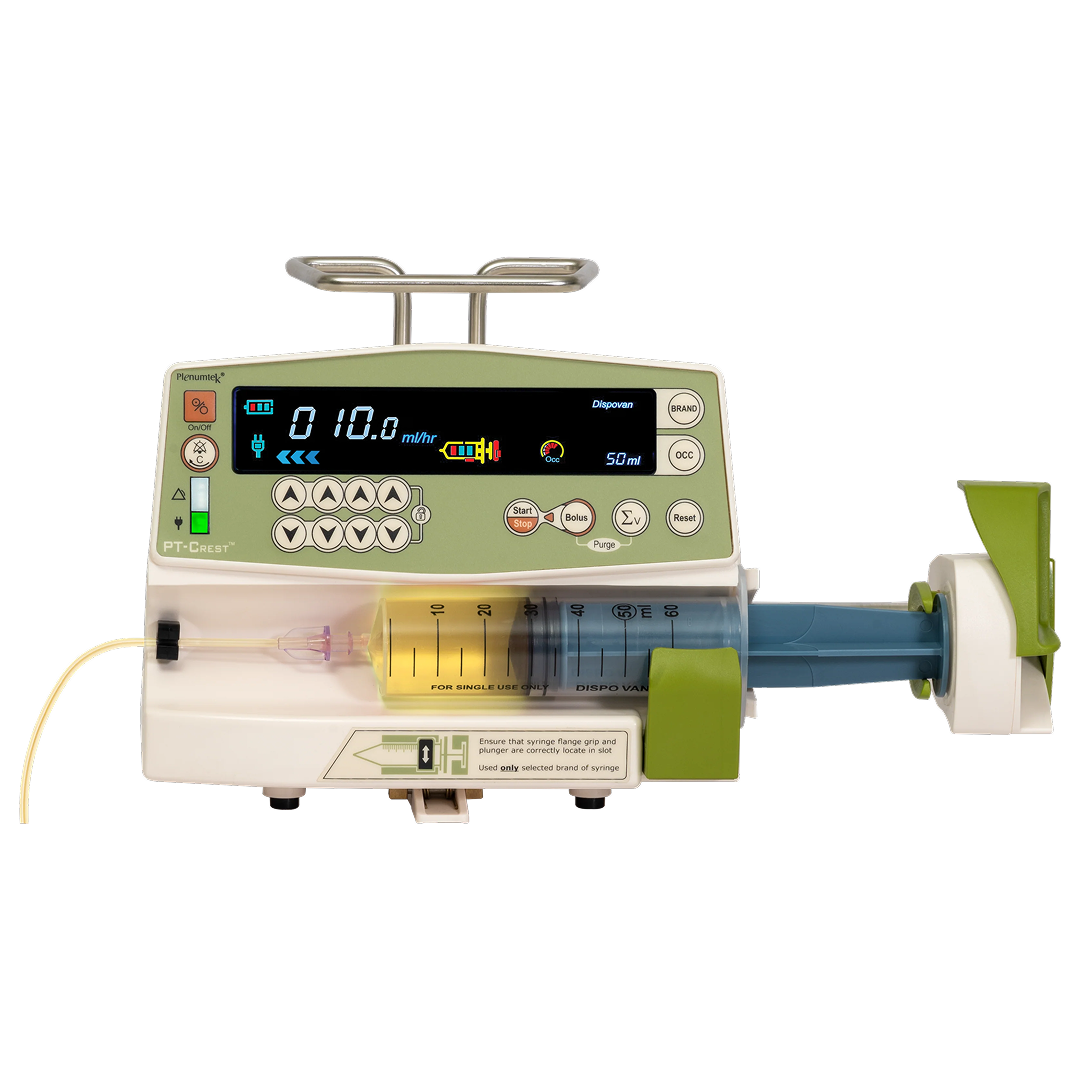

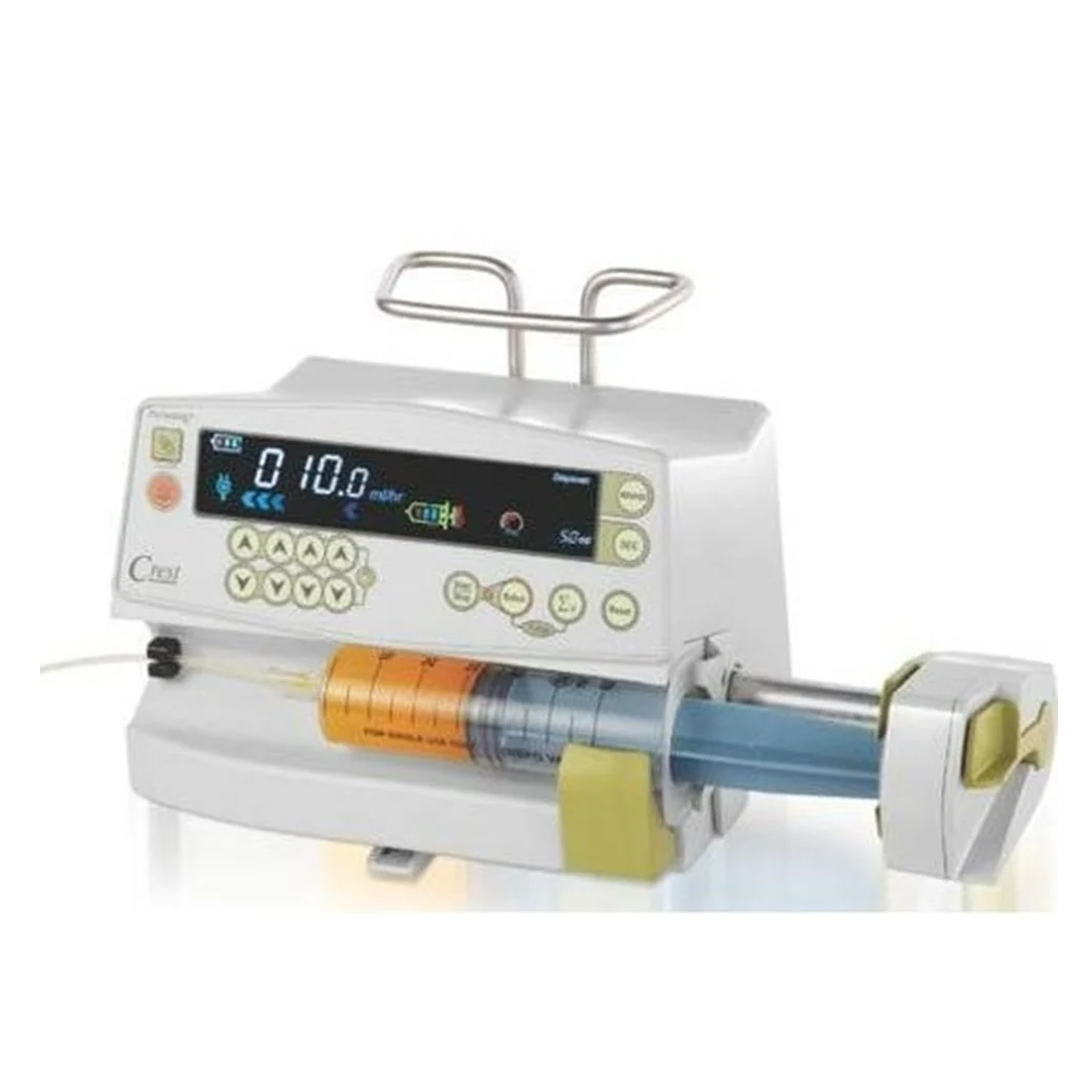

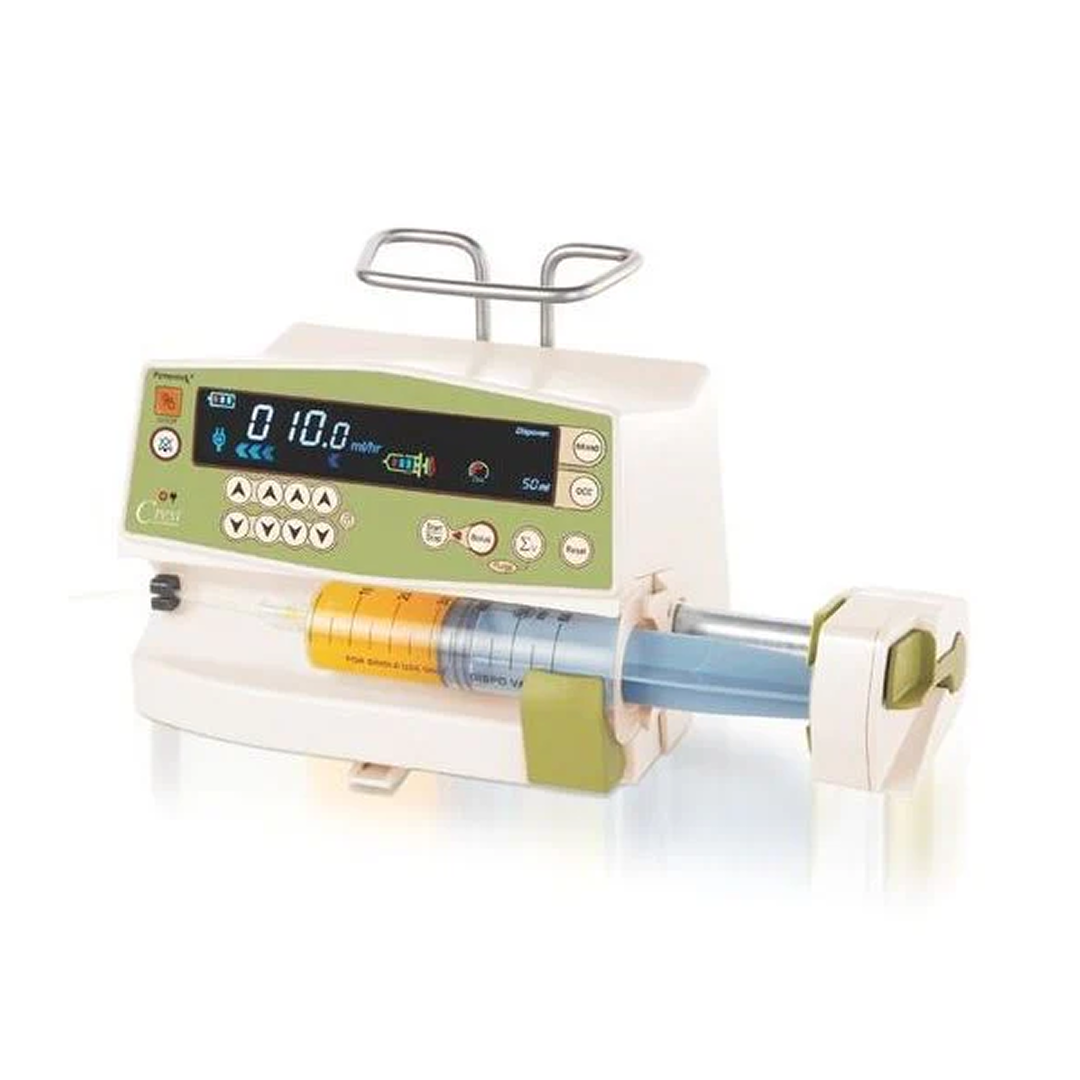

PLENUMTEK Crest Syringe Pump

Key Features & Benefits:

• Front Loading Design: Ensures easy and quick syringe installation, streamlining workflow and saving valuable time in critical situations.
• Capacitive Touch Screen Keypad: Offers a responsive and intuitive interface for effortless programming and monitoring of infusions.
• EBTN LCD Display: Provides clear and comprehensive visibility of all critical parameters, including syringe size, brand, flow rate, infused volume, occlusion level, and battery life, ensuring information is visible at a glance.
• Ergonomic & Leak-Proof Design: Prioritizes both user comfort and patient safety, preventing fluid leakage and ensuring hygienic operation.
• Lightweight & Portable: Weighing only 1.8 kg, the Crest Syringe Pump is highly portable, allowing for easy transport within the hospital or during patient transfers.
• Versatile Mounting Options: Features a vertical and horizontal mounting clamp, offering flexibility in placement on IV poles or other equipment.
• Stackability: Designed for interlocking multiple units, enabling multi-channel infusions for complex patient needs.
• High Accuracy: Delivers precise volumes of fluid, ensuring effective medication administration and patient safety.
• Comprehensive Alarms: Equipped with audible and visible alarms for various conditions such as occlusion, KVO/KOR (Keep Vein Open/Keep Open Rate), and syringe empty, enhancing patient safety.

Technical Specifications:

• Product Type: Front Loading Syringe Infusion Pump
• Pumping Mechanism: Lead screw mechanism
• Dimensions: 30mm (W) × 183mm (L) × 115mm (H)
• Weight: 1.8 Kgs
• Display Size & Type: 135mm × 21mm EBTN LCD Display
• Keypad: Capacitive touch screen keypad
• Fixation: Allows Horizontal and Vertical Mounting
• Power Source: 110/220 VCA (+/-20%), 50/60 Hz, 12 VA
• Battery: 8.4V Rechargeable NiMh (Capacity minimum 3 hours at 5ml/hr)
• Quality Management: ISO 9001:2008 & ISO 13485:2003 Certified
• Moisture Protection: IP24 as per IEC 60529 (Splash Proof)
• Electrical Safety: Class II, Type CF
• Conformity Standards: IEC 60601-1 & IEC 60601-2-24

Plenumtek - Innovating for Superior Patient Care.
