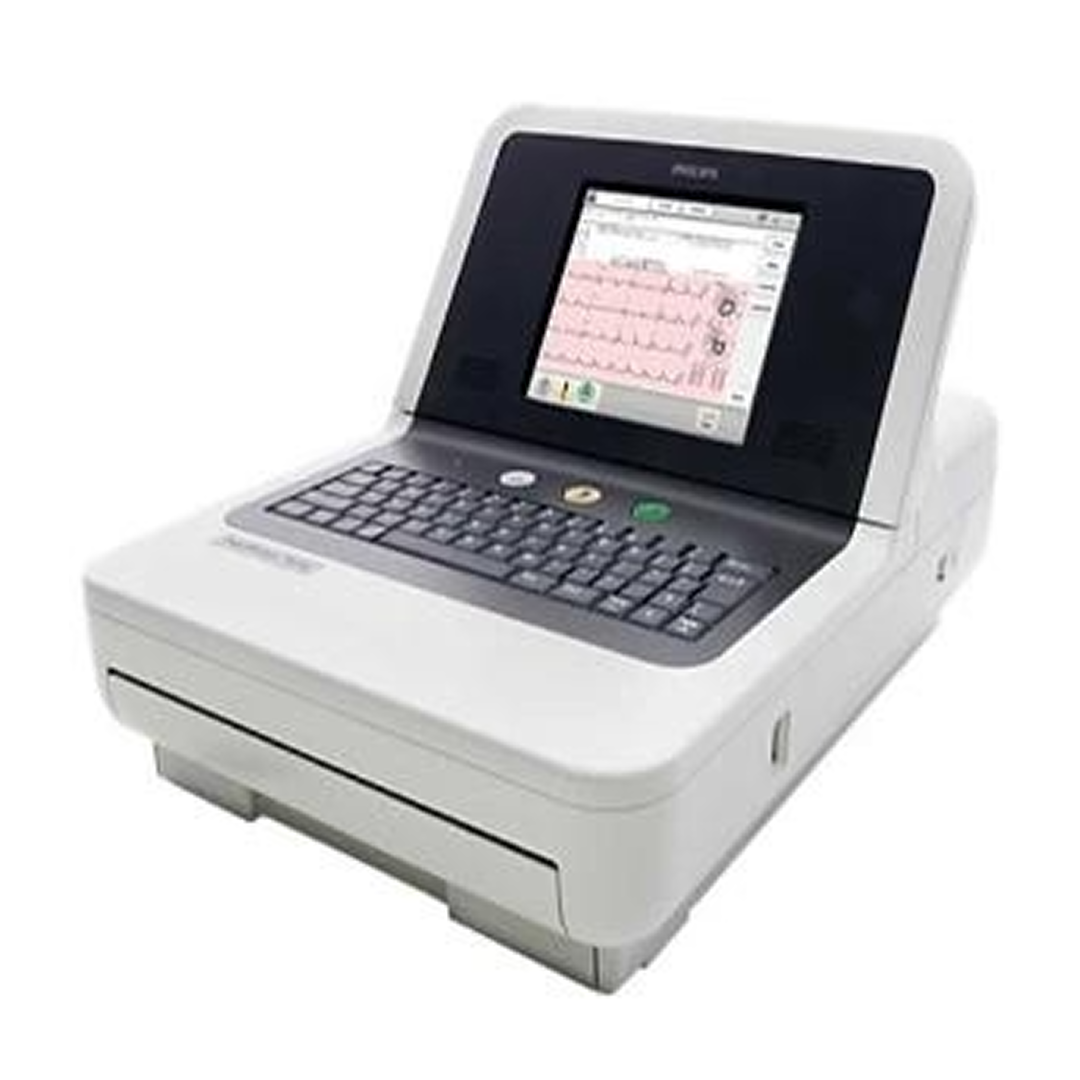

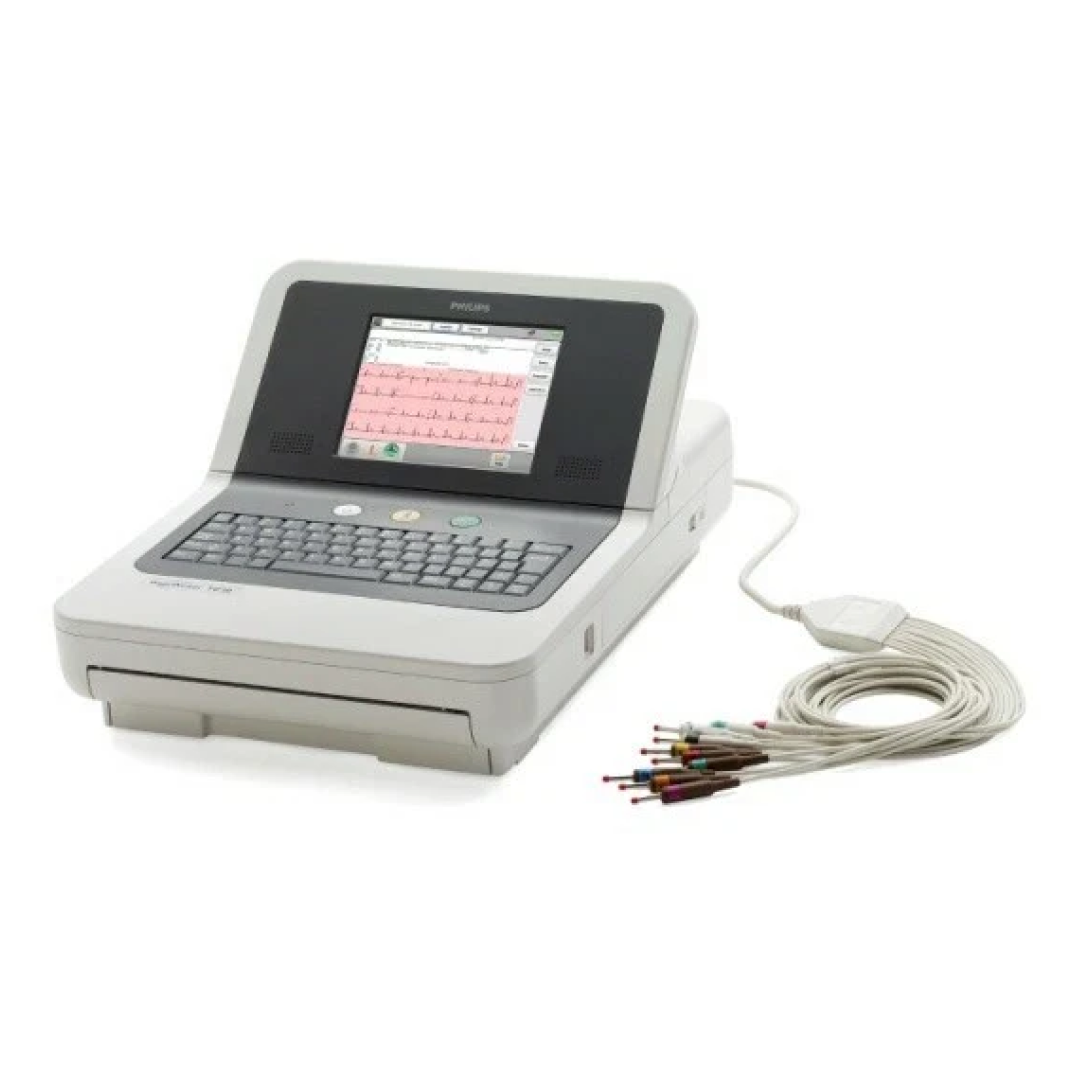

PHILIPS PageWriter TC20 Cardiograph

Key Features & Benefits:

• Effortless 1-2-3 Touch Operation: Navigate acquisition, analysis, storage, printing, and access to previous ECGs with unparalleled ease.
• Seamless Workflow Integration: Automate your workflow with one-button push via XML, HL7, and native industry-standard DICOM communication. Download worklists and patient demographics effortlessly using wired or wireless LAN.
• Native DICOM Interoperability: Directly access ECG orders from your existing DICOM MWL provider and store DICOM format ECGs to your PACS.
• World-Class DXL Algorithm: Benefit from industry-leading clinical decision support with the Philips DXL ECG Algorithm, including over 600 interpretive statements, integrated pediatric analysis, and STEMI diagnostic aids like graphical ST presentation and STEMI-CA (Culprit Artery) criteria.
• Comprehensive ECG Functions: Acquire 12 simultaneous leads and generate various ECG reports (e.g., 3×4, 6×2, 12×1, standard and Cabrera formats).
• Advanced Measurements & Analysis: Includes detailed standard measurements, configurable QT correction, five-minute history of all 12 leads, and extended morphology and rhythm analysis (46 measurements in each of 12 leads, 21 rhythm parameters).
• Smart Signal Quality Indicators: Features Leads-off advisory with anatomical lead map, lead color indicators, and Lead Check software for detecting 20 different lead reversals to ensure optimal data acquisition.
• Flexible Data Handling: Store and transfer full-fidelity ECG data (500Hz for 10 seconds of all 12 leads) in PDF, XML, DICOM 12-lead ECG, and DICOM General ECG formats. Internal storage for 200 ECGs, expandable with optional USB device.
• User-Friendly Interface: Equipped with a 6.5-inch TFT active matrix touchscreen display (64K colors) and a backlit 1-2-3 button setup for intuitive use.
• Robust Connectivity: Wired (RJ45) and wireless (802.11 b/g) LAN provide seamless network integration.
• Portable and Durable: Compact dimensions (31×40×21 cm) and lightweight (8.6 kg including battery and patient cable) make it easy to transport.
• Reliable Power: Lithium-ion battery supports ~30 ECGs or 30 minutes of continuous rhythm recording per charge, with a recharge time of ~4 hours to full capacity.
• Enhanced Data Input: Supports automated data input via bar code reader and Smart "IC" card reader for efficient patient demographic entry.

Technical Specifications (Highlights):

• Simultaneous Lead Acquisition: 12 leads
• Printer Resolution: 200 dpi (voltage axis) × 500 dpi (time axis) at 25 mm/sec
• Battery Type: Lithium-ion
• Display Resolution: 640 × 480 VGA
• Dimensions: 31 × 40 × 21 cm (12 × 16 × 8 in)
• Weight: 8.6 kg (19 lb)
