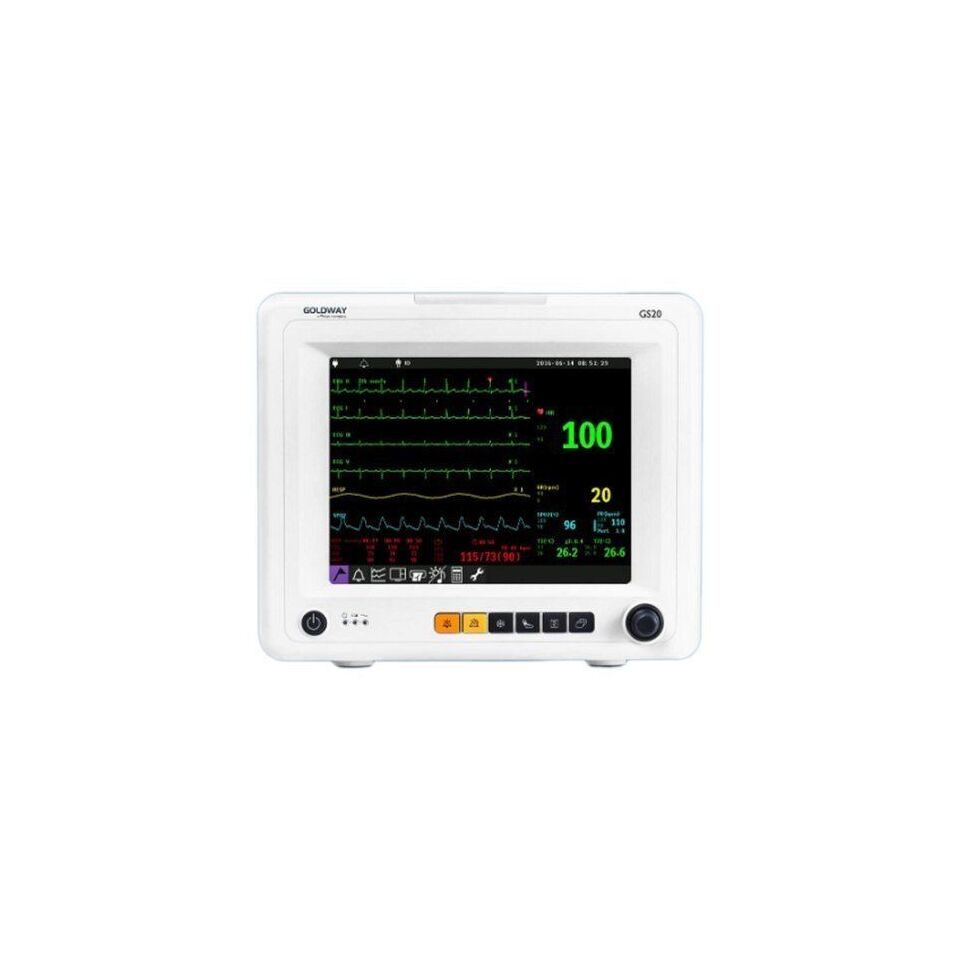

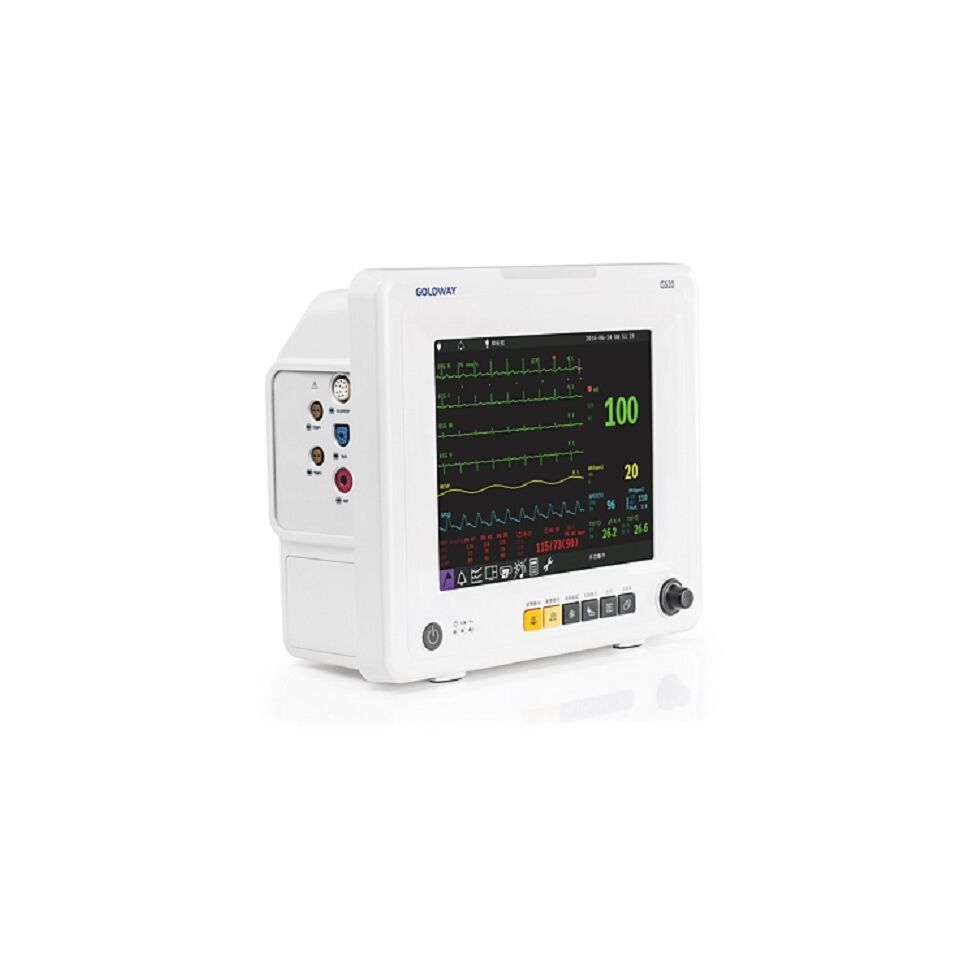

PHILIPS Goldway GS20 Patient Monitor

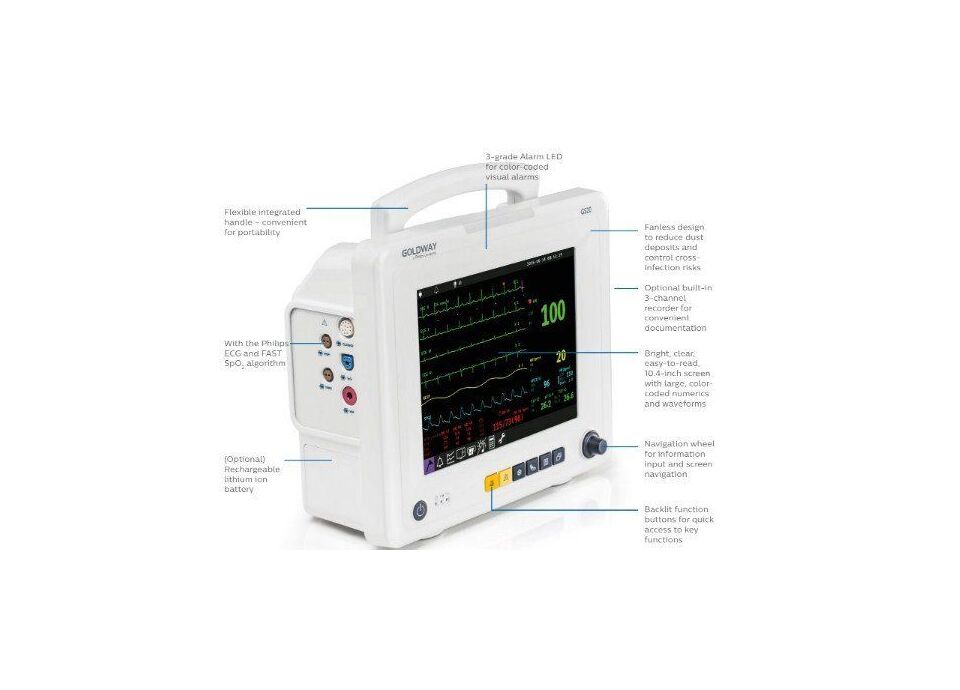

Key Features & Benefits:

• Bright & Clear 10.4-inch Display: The color TFT LED screen ensures vital signs and waveforms are easy-to-read, with large, color-coded numerics and waveforms. It offers a maximum display of 8 channels with auto channel height adjustment.
• Ergonomic & Portable Design: Its lightweight and ergonomic design, complete with a flexible integrated handle, makes it easy to use and move around. Quickly mount it on a roll stand for bed-to-bed mobility.
• Trusted Philips Technology: Equipped with Philips' renowned FAST SpO2 technology for anti-motion and low perfusion performance, and Philips ECG algorithms, ensuring accurate and reliable measurements.
• Comprehensive Standard Parameters: Monitors ECG, HR, RESP, NBP, SpO2, PR, and dual TEMP, providing essential patient data at a glance.
• Fan-less Design: Reduces dust deposits and helps control cross-infection risks, contributing to a safer clinical environment.
• Extended Battery Life: A 4800 mAh, 11.1V rechargeable lithium-ion battery provides up to 2.5 hours of continuous monitoring.
• Flexible Data Management & Connectivity:
  • Bed-to-bed overview function: Monitor waveforms for up to 32 monitors on the same local network without requiring a central monitoring system.
  • Central Monitoring System (CMS) Integration: Bi-directional communication via LAN networking to the Philips Efficia CMS200 central monitoring system.
  • HL7 Output: Standard HL7 data output for seamless integration with Electronic Medical Records (EMR) and Hospital Information Systems (HIS).
  • Data Storage: Stores 1,600 sets of NIBP tables, 1,200-hour trend graphs for all parameters, 120-minute full disclosure ECG waveform review, and 200 sets of alarm events and arrhythmia events.
• User-Friendly Interface: Features a navigation wheel for information input and screen navigation, plus backlit function buttons for quick access to key functions. Four user-defined profiles and a timer help improve clinicians' efficiency.
• Integrated Recorder (Optional): An optional built-in 3-channel thermal recorder allows for convenient real-time, timed, or alarm-activated documentation.

Technical Specifications (Highlights):

• Net Weight: 3.6 kg
• Dimensions: 316 × 265 × 131 mm (W × D × H)
• ECG: 3-lead or 5-lead selectable. HR range: Adult/Pediatric 15–300 bpm; Neonatal 15–350 bpm
• NIBP: Automatic oscillometric method. Ranges: Adult/pediatric SYS 30–254 mmHg, DIA 10–220 mmHg, MAP 20–235 mmHg
• SpO2: Measurement range 0–100%. PR range 30–300 bpm
• Respiration: Thoracic impedance method. Measurement range 0–150 rpm
• Temperature: 2-channel. Measurement range 0–50∘C (32–122∘F)
• Safety Standards: Compliant with IEC60601-1:2012, IEC60601-1-2:2014, and ISO13485 certified
