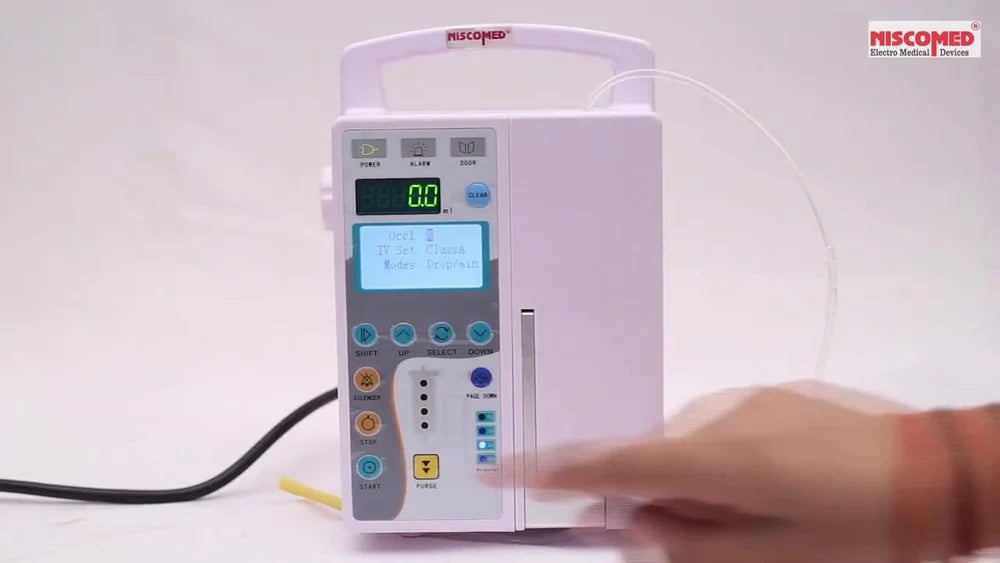

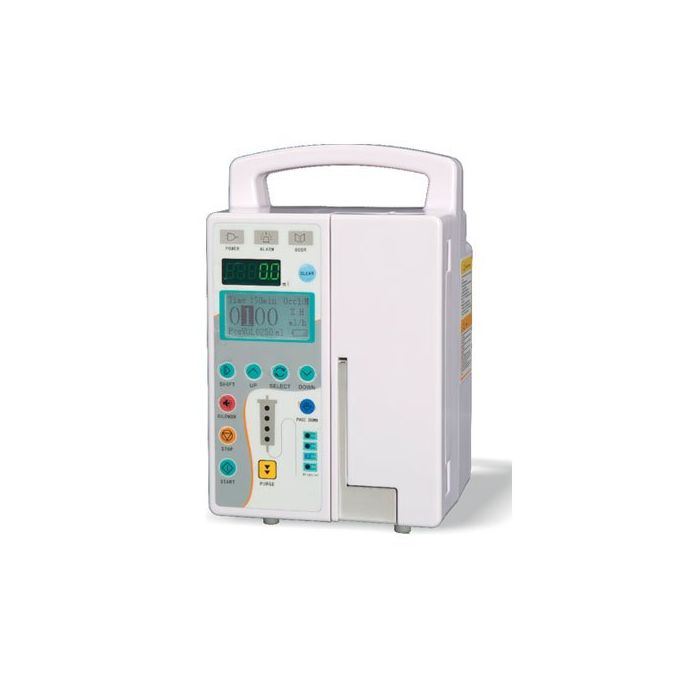

NISCOMED IP-01 Infusion Pump

NISCOMED IP-01 Infusion Pump - Consistent & Accurate Fluid Delivery

Achieve consistent and accurate fluid and medication delivery with the NISCOMED IP-01 Infusion Pump. Designed for reliability and ease of use, this infusion pump provides precise control over infusion rates, ensuring optimal patient outcomes. Its robust alarm system and intuitive interface make it an invaluable asset for any healthcare setting requiring dependable volumetric infusion.

Key Features & Benefits:

• Versatile Infusion Rate: Offers a wide infusion rate range from 0.1 ml/h to 1200 ml/h, accommodating a variety of clinical applications.
• High Rate Accuracy: Ensures precise infusion within ±5% accuracy (after correct calibration), promoting safe and effective treatment.
• Purge Function: Includes a purge rate from 100ml/h to 1200ml/h, which can be calibrated for efficient priming.
• Volume Limit & Total Infusion Volume Tracking: Allows setting of volume limits from 0ml to 9999ml and tracks total infused volume from 0 to 9999.9ml.
• Adjustable Alarm Pressure: Features configurable alarm pressure levels (High, Medium, Low) for occlusion detection.
• Comprehensive Alarm System: Alerts for conditions such as injection nearing completion, end of injection, occlusion, low battery, and more, ensuring constant monitoring and safety.
• Unique Human Voice Alarm System: Provides distinct voice prompts in case of malfunction and automatically pauses the infusion, enhancing safety and reliability.
• Freely Stackable: Can be freely stacked with other NISCOMED pumps, offering flexibility in setting up multi-channel infusion systems.
• Large LCD Screen: Clearly displays working status and infusion parameters for easy monitoring.

Technical Specifications (IP-01 Infusion Pump):

• Infusion Rate: 0.1ml/h – 1200ml/h (1ml/h step)
• Rate Accuracy: Within ±5% (after correct calibration)
• Purge Rate: 100ml/h – 1200ml/h (calibratable)
• Volume Limit: 0ml – 9999ml

• Total Infusion Volume: 0 – 9999.9ml

• Alarm Pressure:
  • High: 800mmHg ± 200mmHg (106.7kPa ± 26.7kPa)
  • Medium: 50/600mmHg ± 100mmHg (66.7kPa ± 13.3kPa)
  • Low: 300mmHg ± 100mmHg (40.7kPa ± 13.3kPa)
• Weight: 2.2kg (net weight)
