Mindray BeneFusion Volumetric Pump

Mindray BeneFusion Volumetric Pump - Smart Touch, Safe Medication Delivery

Elevate your infusion therapy with the Mindray BeneFusion Volumetric Pump, a state-of-the-art solution designed for smart touch operation and superior medication safety. As a core component of the BeneFusion Infusion System, this pump provides a brand-new user experience with its full-size touchscreen and intuitive interface. Ideal for a wide array of clinical settings, it ensures accurate, efficient, and secure medication delivery, while simplifying workflows and reducing the risk of errors.

Key Features & Benefits:

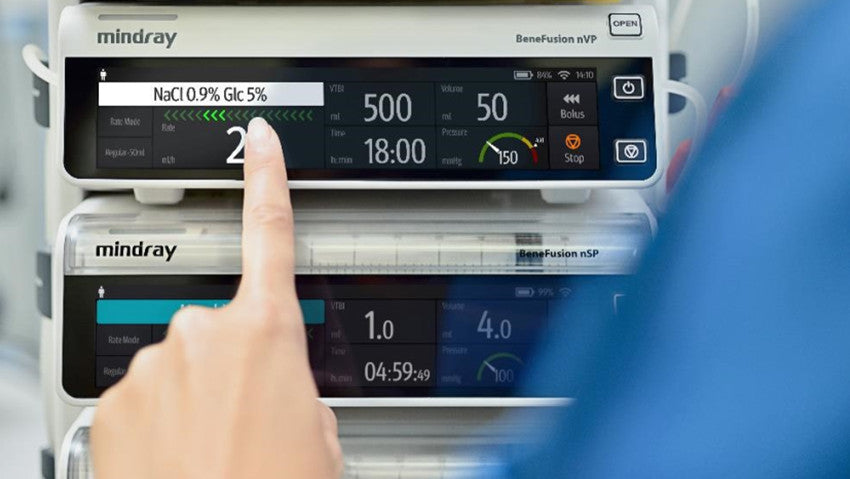

• 7" Full-Size Touchscreen: Offers a brand new, intuitive user experience with a clear, comprehensive display for all infusion parameters.
• Intuitive UI Design: 80% of operations can be completed directly on the main screen, simplifying workflow and enhancing user efficiency.
• See-Through Window Design: Allows for easy observation of infusion status and simplifies cleaning.
• Smart Rapid Ready: Achieves fast start and infusion with a quick 3-second system boot-up time, minimizing delays.
• High Accuracy: Delivers infusions with an impressive accuracy of ≤±1.8%, ensuring precise medication administration.
• Multiple Infusion Modes: Supports a comprehensive range of modes including Rate, Time, Weight, Sequential, Loading Dose, TIVA, and Relay, catering to diverse clinical needs.
• Configurable Drug Library: Features a customizable drug library with a minimum of 2000 drugs, organized by clinical department, enhancing medication safety.
• Intelligent Alarm Management: Provides real-time pressure monitoring with various alarm levels, automatically reduces bolus volume after occlusion, and offers multi-level alarm volumes.
• Long Battery Life: Offers ≥10 hours of operating time at 25ml/h (≥15 hours with smart battery), ensuring extended use and portability.
• Connectivity & Integration: Supports wired/wireless communication, USB for data import/export, and seamless integration with BeneFusion nCS infusion central station and BeneVision Central Monitoring System.
• Closed-Loop Medication Management (Optional): Assists in reducing medication errors with barcode scanning, automatically aligning prescriptions, and improving workflow efficiency.
• Easy Maintenance: Designed for manufacturing consistency, pre-configured consumables, and simplified set calibration, reducing maintenance time.

Technical Specifications:

• Model: BeneFusion nVP
• Screen: 7" full-size touchscreen TFT color LCD (800x480 pixels)
• Accuracy: ≤±1.8%
• Flow Rate Range: 0.1-2000ml/h (adjustable based on consumable)
• KVO Rate: 0.01-5ml/h (adjustable)
• Battery Operation Time: ≥10 hours @ 25ml/h (≥15 hours with smart battery)
• Weight: ≤2.3kg
• Dimensions: ≤267 x 150 x 78 mm
• IP Rating: IP33
• Connectivity: USB, RS232, Nurse Call, Wired/Wireless

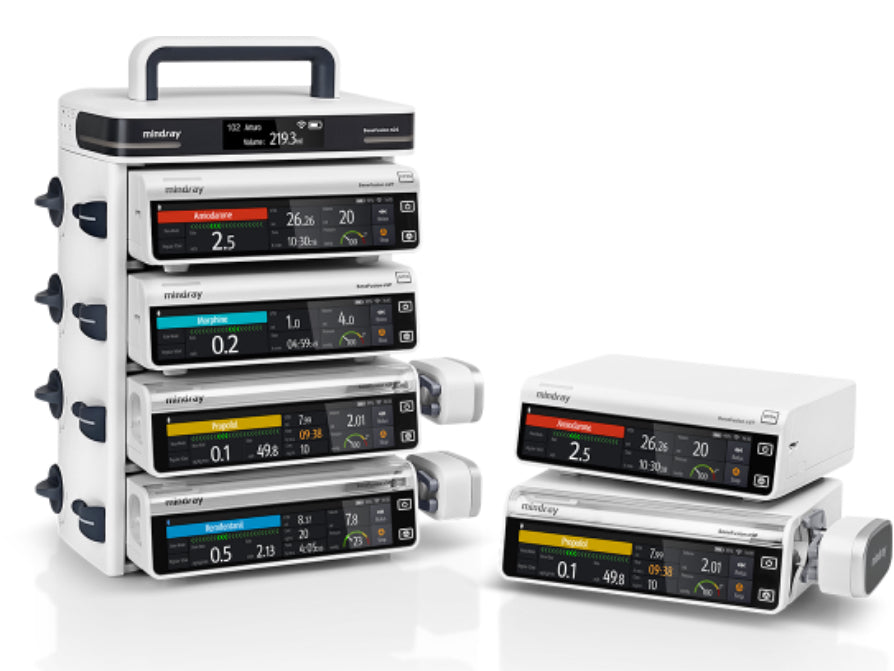

• Stackability: Up to 3 pumps can be stacked.

Mindray - Healthcare Within Reach.
