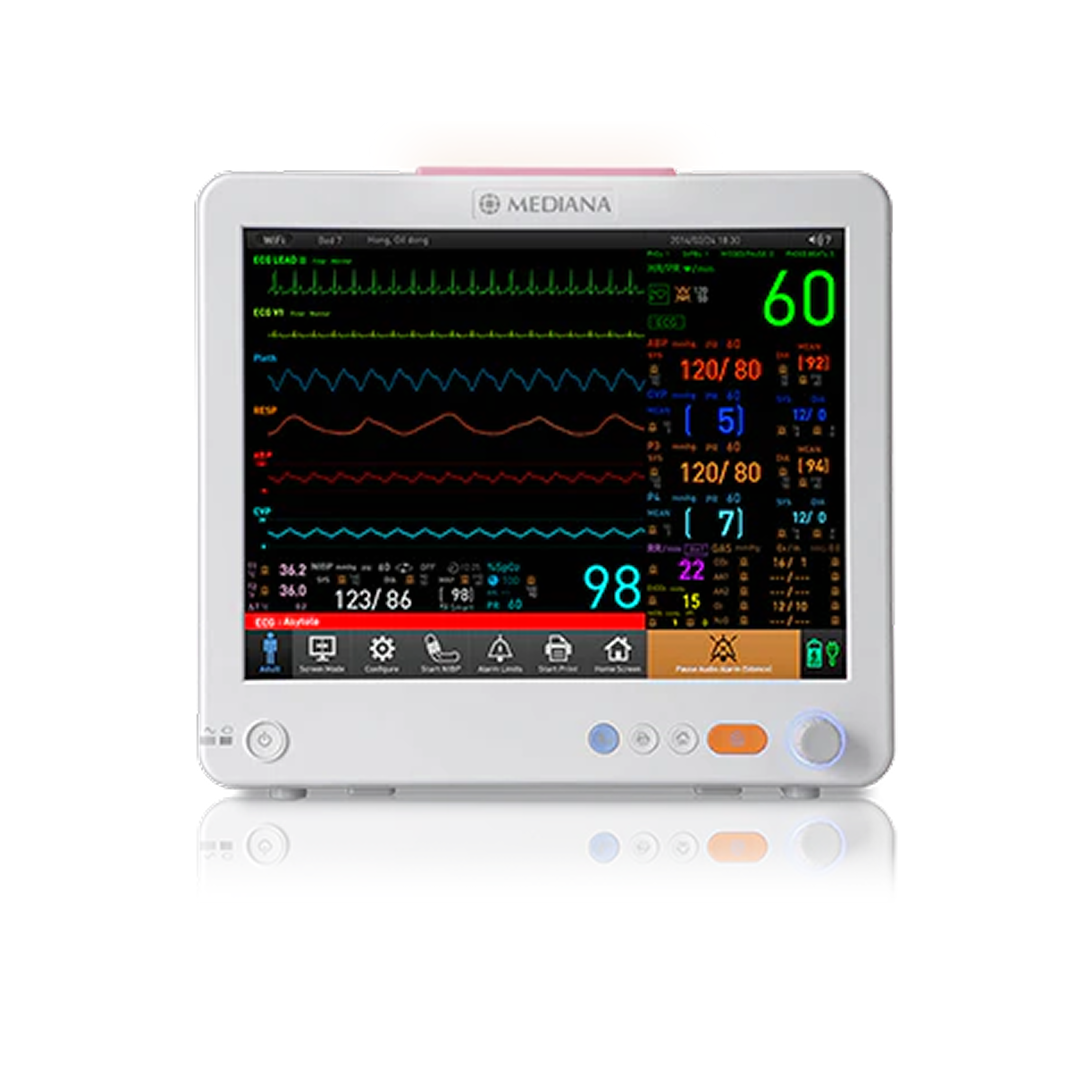

MEDIANA M50 Multi Parameter Patient Monitor

Key Features & Benefits:

• Expansive 15-inch Touchscreen Display: Enjoy superior visibility and ease of use with a high-resolution touchscreen, complemented by a physical control knob for effortless navigation and selection of menus and options.

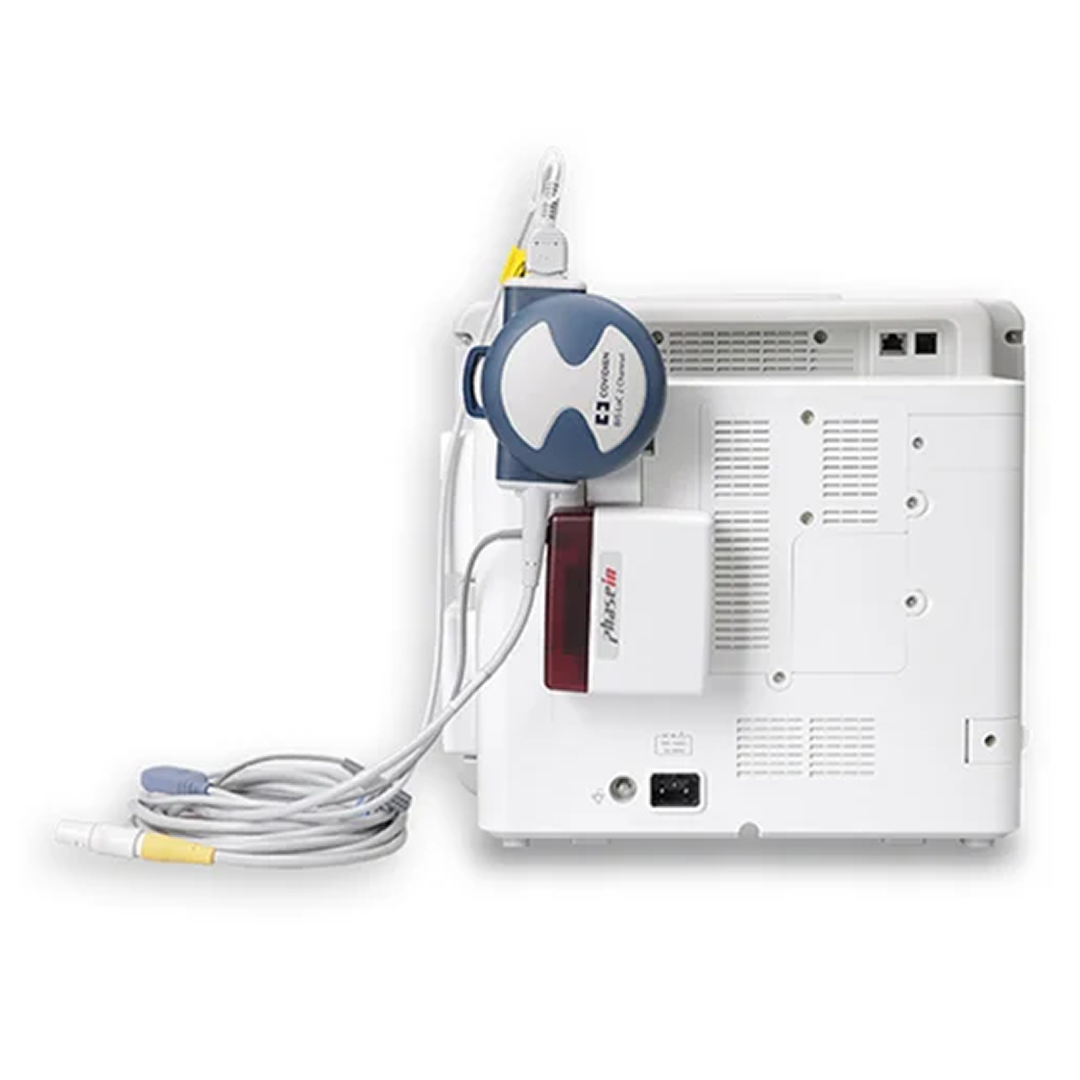

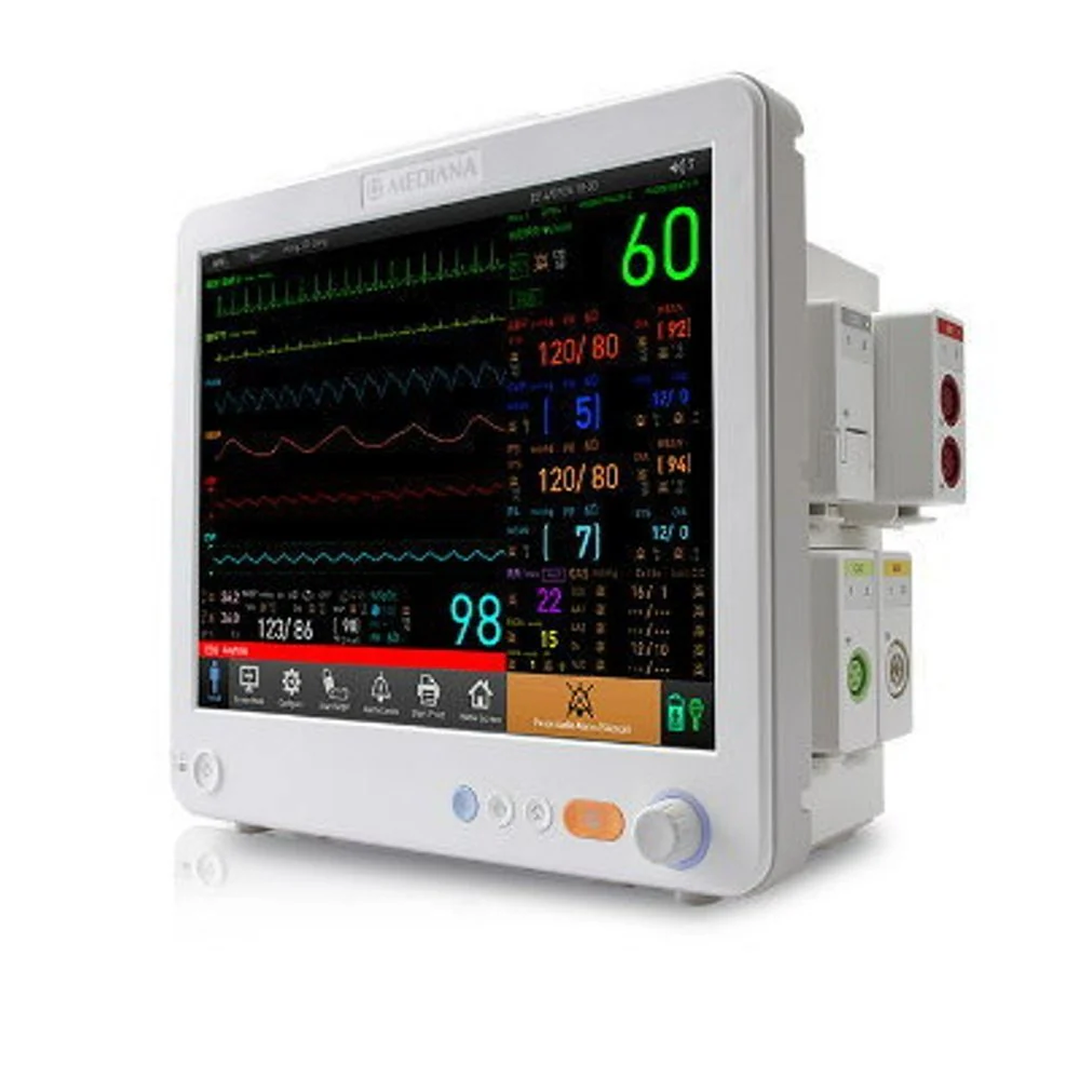

• Modular Design for Tailored Solutions: The M50's modular architecture allows you to customize its functionality. Easily add or remove modules for advanced parameters without disassembling the monitor.
• Comprehensive Standard Monitoring:
  • ECG: Supports 3-lead, 5-lead, and 12-lead (Glasgow) ECG monitoring for detailed cardiac assessment.
  • SpO2: Reliable Pulse Oximetry with options for Nellcor or Mediana technology.
  • NIBP: Accurate Non-Invasive Blood Pressure measurements.
  • RR: Respiratory Rate monitoring.
  • 2CH TEMP: Dual-channel temperature monitoring.
• Advanced Optional Modules for Enhanced Care:
  • Dual IBP Module: Offers 2-channel or 4-channel Invasive Blood Pressure monitoring.
  • EtCO2 Module (Oridion Microstream™): Measures continuous EtCO2, InCO2, and Respiratory rate, crucial for ventilatory management.
  • Multi-gas Module (Main/Sidestream): Features water trap-free technology for measuring CO2, N2O, HAL, ISO, ENF, SEV, DES, and O2, with automatic calibration.
  • BIS™ Module (from Covidien): Supports Bispectral Index monitoring to help adequately set anesthesia levels.
  • Specialized Neonatal Monitoring (OxyCRG): The OxyCRG screen provides a combination of beat-to-beat heart rate, SpO2, and respiration trends, vital for identifying significant events in neonatal patients.

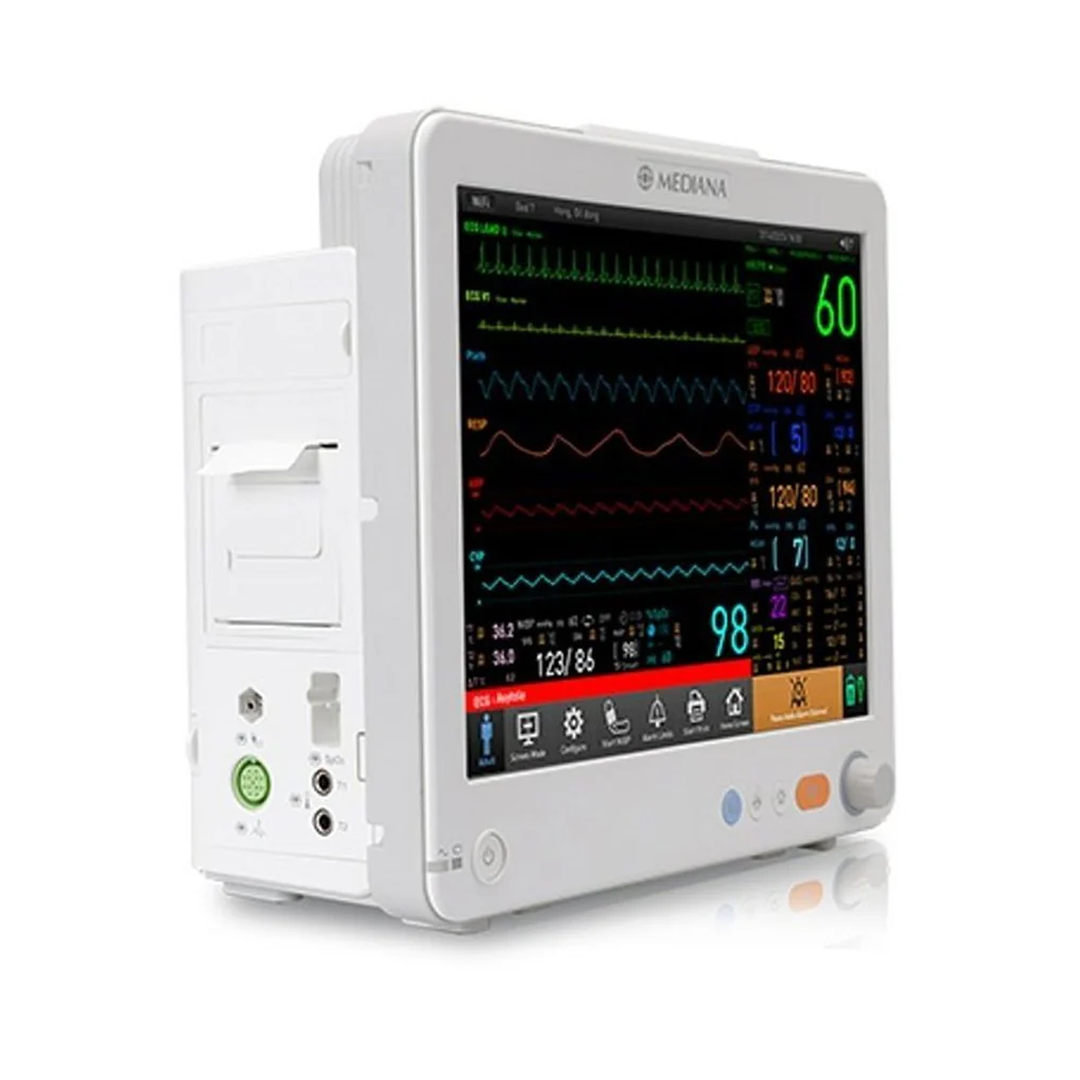

• Robust Connectivity & Data Management: Central Monitoring System: Transmit patient data to the MEDIANA Central Monitoring System Infoware G via built-in LAN or an optional Wi-Fi module. External Device Support: Connect to external equipment such as a PC, nurse call systems, and utilize for software upgrades. Versatile Ports: Includes HDMI (for dual slave monitor), Ethernet, Nurse Call, USB (for barcode or SW upgrade), and SD Slot (for extended data). Integrated Printer: Features a 3-waveform printer for immediate printouts.
• User-Friendly Interface: Easily configure patient info, display settings, display modes, alarms, printing, sound, date, and time. The service menu provides efficient access to all relevant settings for maintenance.
