Graseby 2100 Syringe Infusion Pump - Advanced Infusion with Body Weight Mode

Graseby 2100 Syringe Infusion Pump - Advanced Infusion with Body Weight Mode

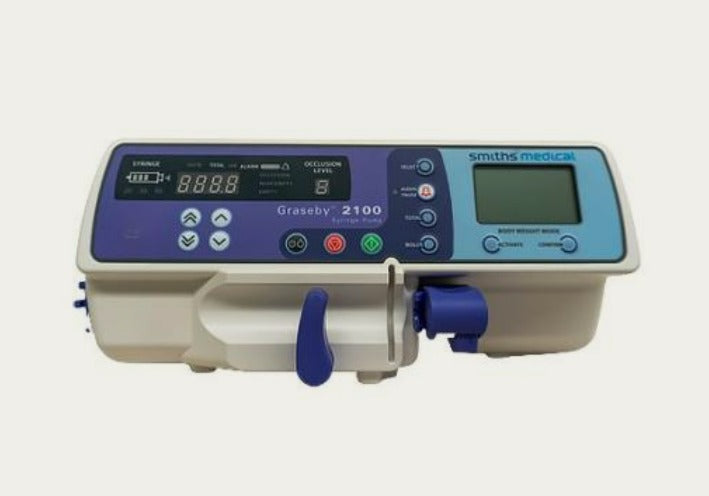

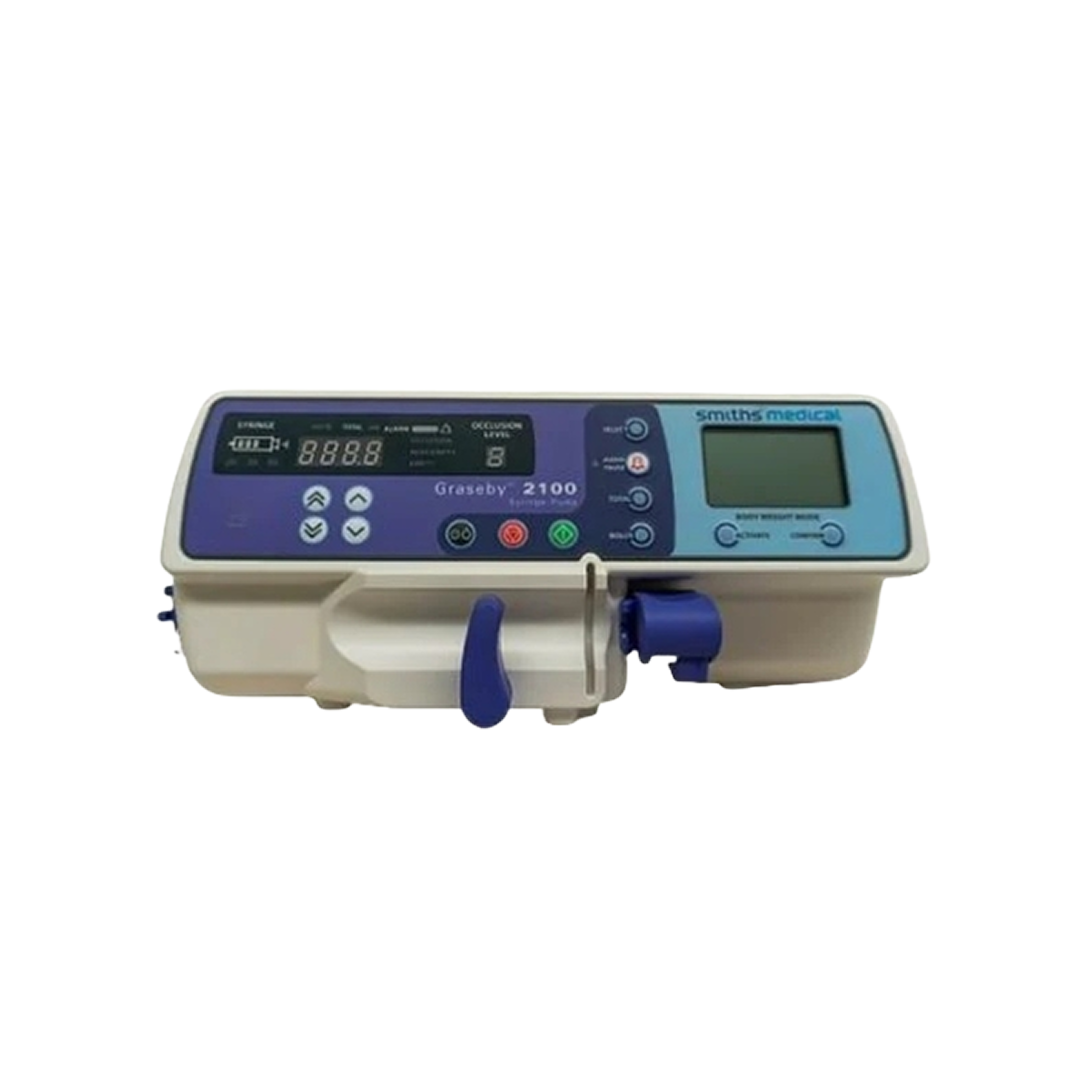

Experience advanced and highly accurate medication delivery with the Graseby™ 2100 Syringe Infusion Pump from Smiths Medical. Building on the trusted reputation of the Graseby series, the 2100 model introduces enhanced features, including a dedicated Body Weight Mode, making it an ideal choice for critical care, anesthesia, and pediatric applications. This pump ensures precise and safe infusion, supporting a wide range of clinical needs.

Key Features & Benefits:

• Advanced Body Weight Mode: Specifically designed for anesthesia and pediatric requirements, this mode allows programming in mass units (mcg/kg/min or mg/kg/hr) and automatically calculates the infusion rate based on body weight ($0.1\text{kg}$ to $300\text{kg}$), drug mass ($0.1\text{mg}$ to $999.9\text{mg}$), and solution volume ($0.1\text{mL}$ to $999.9\text{mL}$).
• Exceptional Versatility: Capable of delivering medication from $0.1mL/h$ up to $1200mL/h$, dependent on syringe size.
• User-Friendly Operation: Offers easy loading, programming, and operation with a simple, four-step programming sequence, allowing clinicians to focus more on patient care.
• Wide Syringe Compatibility: Supports a broad range of syringe sizes and brands, including major manufacturers and selected local brands, with automatic sensing for 20mL, 30mL, and 50mL syringes.
• Enhanced Patient Safety:
  • Post-Occlusion Bolus Reduction: Minimizes the potential post-occlusion bolus by reducing pressure in the patient tubing.
  • Adjustable Occlusion Pressure: Features three adjustable occlusion pressure settings (Low, Medium, High) for tailored safety: $40.0\text{kPa}\pm 13.3\text{kPa}$ (300mmHg $\pm$ 100mmHg), $66.7\text{kPa}\pm 13.3\text{kPa}$ (500mmHg $\pm$ 100mmHg), and $106.7\text{kPa}\pm 26.7\text{kPa}$ (800mmHg $\pm$ 200mmHg).
  • Patient Tubing Holder: Reduces the risk of accidental syringe displacement.
  • Visual and Audible Alarms: Promotes clinician awareness and prompt intervention with alarms for occlusion, near empty, and empty states.
  • Two-Step Power-Off Sequence: Designed to prevent inadvertent power down during infusion.
  • Keep Vein Open (KVO) Function: Helps maintain vascular access at $0.5mL/hr$.
• Reliable Power & Battery Backup: Operates on AC power ($220-230\text{V}$ or $110-120\text{V}$) with a rechargeable 12V DC Nickel Metal Hydride (Ni-MH) battery providing typically 4 hours of operating time at $5mL/h$.
• Quick Information Access: The infusion "Total" button provides quick and easy access to crucial information.
• Compact & Lightweight: Weighs approximately 2.1kg (including pole clamp).

The Graseby 2100 Syringe Infusion Pump provides an advanced, precise, and safe solution for complex medication delivery needs in modern healthcare environments.
