EDAN X Series Patient Monitor - Ultra-Slim & Versatile for All Patient Types

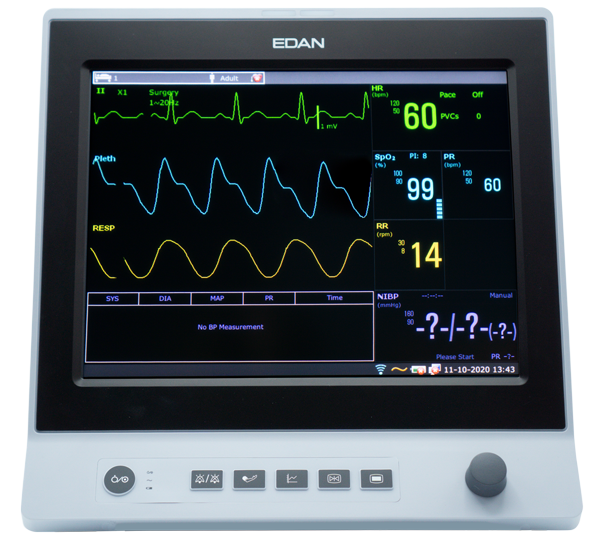

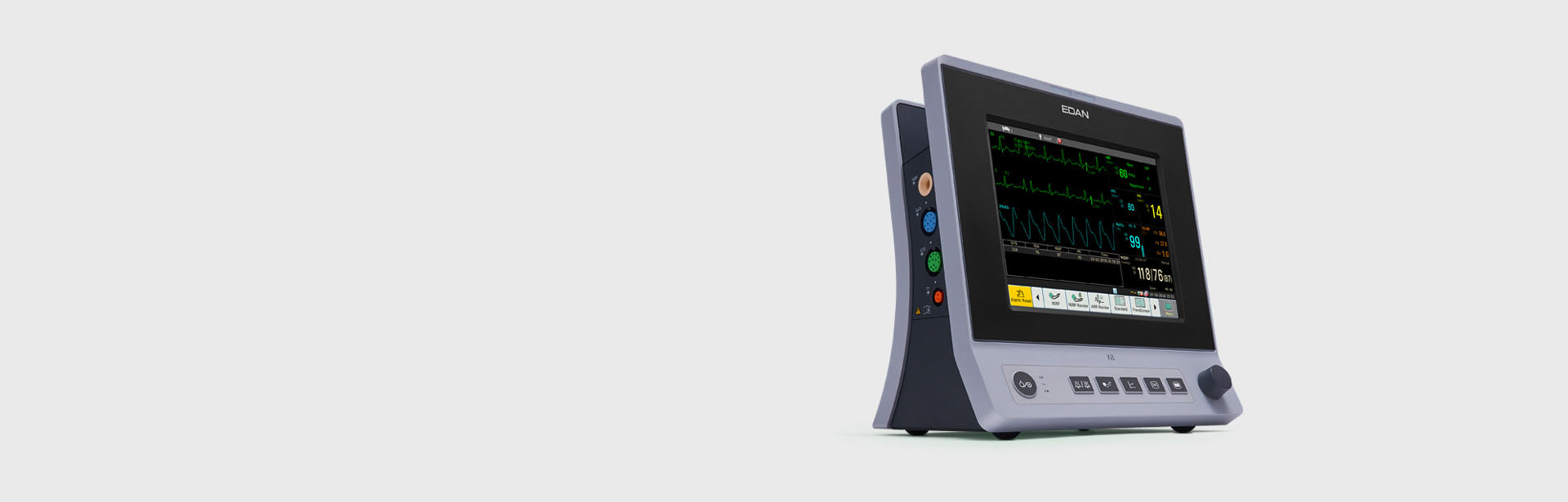

The EDAN X Series Patient Monitor redefines patient monitoring with its stunning ultra-slim design and expandable parameters, making it an ideal choice for diverse clinical scenarios. From emergency rooms to general wards, rehabilitation departments, and cardiac units, the X Series provides reliable and accurate monitoring for all patient types, from neonatal to adult.

Key Features & Benefits:

• Sleek & Ultra-Slim Design: The visually appealing and compact design makes it easy to integrate into any medical environment.
• Comprehensive Patient Coverage: Suitable for monitoring neonatal, pediatric, and adult patients, offering versatility across various healthcare settings.
• High-Resolution Display: Available with 12.1" (X12), 10.1" (X10), or 8" (X8) color TFT screens, all providing clear visuals. A maximum of 13 waveforms can be displayed simultaneously. Optional touch screen functionality enhances user interaction.
• Advanced ECG Capabilities:
  • Customizable 6-lead placement allows for more ECG waves.
  • Automatic lead type detection simplifies setup.
  • Industry-leading iSEAP algorithm with auto-detection of 33 types of arrhythmias ensures precise diagnosis.
  • SEMIP algorithm provides 208 ECG findings considering age and gender diversities.
  • Supports 3-electrode, 5-electrode, and 10-electrode ECG configurations.
  • High CMRR ($>105dB$ in Monitor and Surgery modes) for excellent noise rejection.
• Accurate NIBP Measurement:
  • Dual dust filter design prevents internal blockage for consistent, accurate readings.
  • Unique cleaning mode for easy routine maintenance.
  • ICUFS algorithm with smart deflation technology optimizes comfort and accuracy.
  • Measures Systolic, Diastolic, and MAP, with broad measuring ranges for adult, pediatric, and neonate patients.
• Superior SpO2 Performance:
  • IMAT algorithm delivers outstanding motion resistance and low perfusion resistance performance for reliable readings.
  • Reference reading of Perfusion Index (PI) from 0 to 10 based on perfusion changes.
  • Allows simultaneous SpO2 and NIBP measurements on the same limb.
• Proprietary CO2 Algorithms (Optional EDAN G2 CO2):
  • Superior water trap design for accurate monitoring.
  • ICARB algorithm with intelligent CO2 pseudo wave identification technology.
  • Low sampling rate as low as 50ml/min.
• Extended Data Storage: Store up to 240 hours of trend graphs and tables, 200 sets of arrhythmia events, and 48 hours of waveforms.
• Enhanced Safety: Defibrillation and electrosurgical interference protection. Class 1 equipment and internally powered equipment.
• Quiet, No-Fan Design: Operates silently for a more comfortable patient environment.
• Flexible Connectivity: Includes USB port, optional VGA output, Nurse Call/Analog Output/Defibrillation Synchronization. Supports HIS/EMR connection via HL7 and MFM-CMS/GW1 Gateway Software. Optional Wi-Fi available.
• Robust Battery Life: Standard rechargeable Li-ion battery offers 2500mAh for up to 5 hours of operating time. Optional 5000mAh battery extends operation to 10 hours.

Technical Specifications (Highlights):

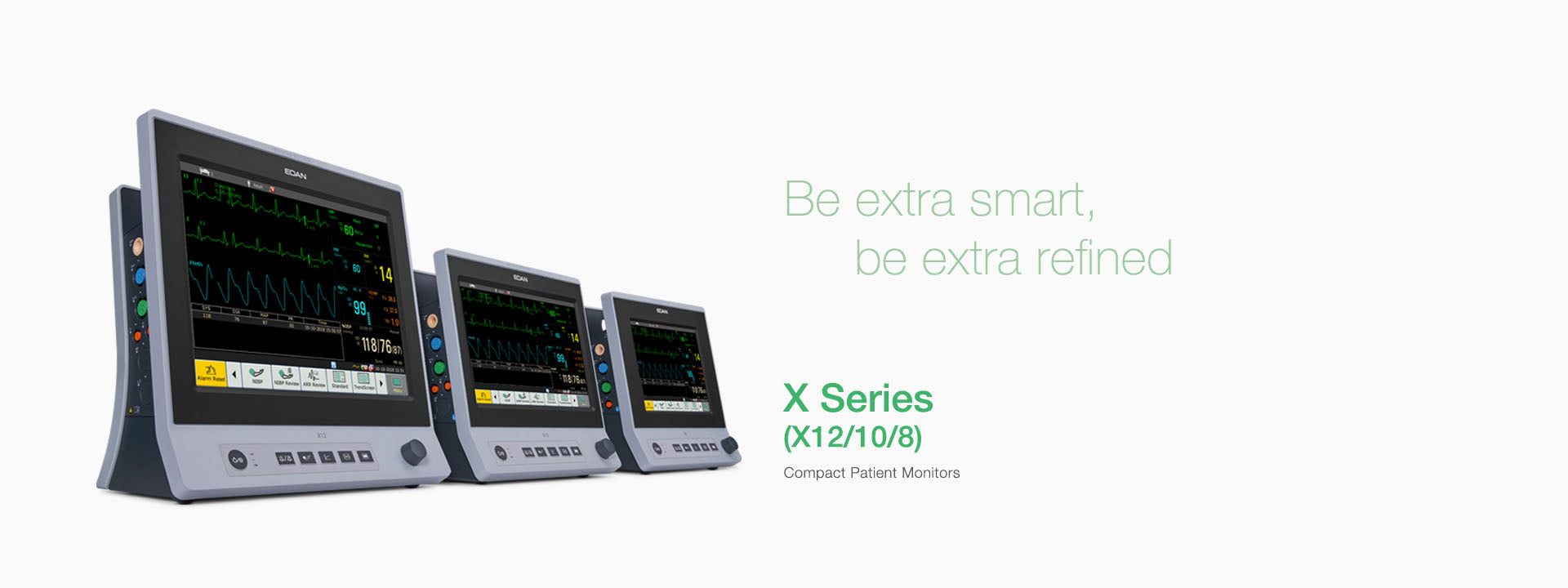

• Display: 12.1" (X12), 10.1" (X10), 8" (X8) color TFT screen.
• Dimensions:
  • X8: $230mm\left(L\right)\times 236mm\left(W\right)\times 147mm\left(D\right)$.
  • X10: $263mm\left(L\right)\times 246mm\left(W\right)\times 140mm\left(D\right)$.
  • X12: $300mm\left(L\right)\times 260mm\left(W\right)\times 150mm\left(D\right)$.
• Weight (Standard Configuration): 3.6 kg (X8), 4.2 kg (X10), 5.5 kg (X12).
• Battery: 14.8V rechargeable Li-ion battery.
• ECG Heart Rate Range: Adult: 15-300bpm; Pediatric/Neonate: 15-350bpm.
• SpO2 Measuring Range: 10% to 100%.
• Temperature Measuring Range: 0∘C to 50∘C (32∘F to 122∘F).
• Environmental: Working Temperature: 0∘C to 40∘C (32∘F to 104∘F). Working Humidity: 15%RH to 95%RH (non-condensing).

About EDAN Instruments:

EDAN Instruments, Inc. is a global leader in medical equipment, committed to developing high-quality and innovative solutions for healthcare providers worldwide. With a focus on cutting-edge technology and user-centric design, EDAN consistently delivers products that enhance patient care.

Build your confidence on quality care. Invest in the EDAN X Series Patient Monitor for your facility today!
