Description

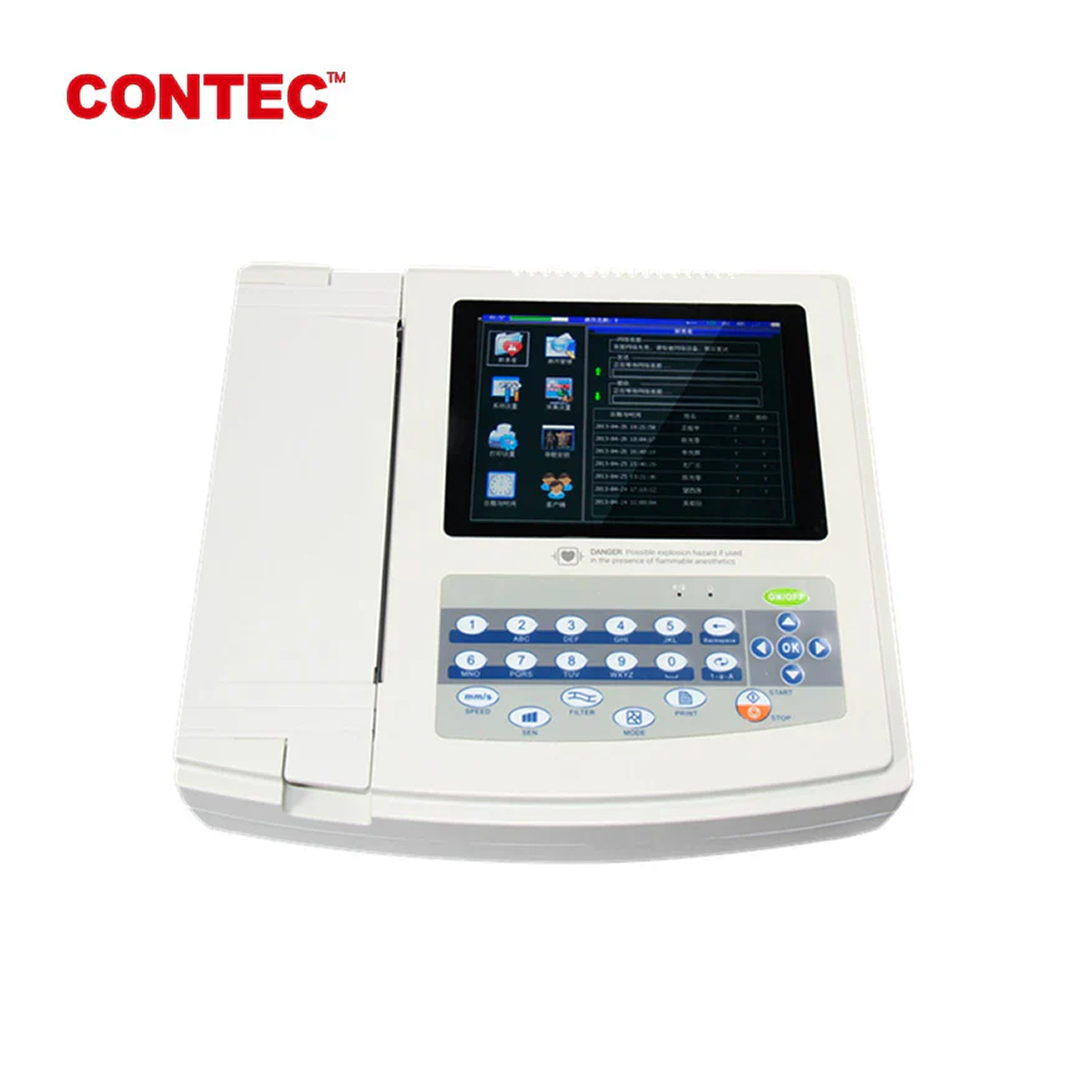

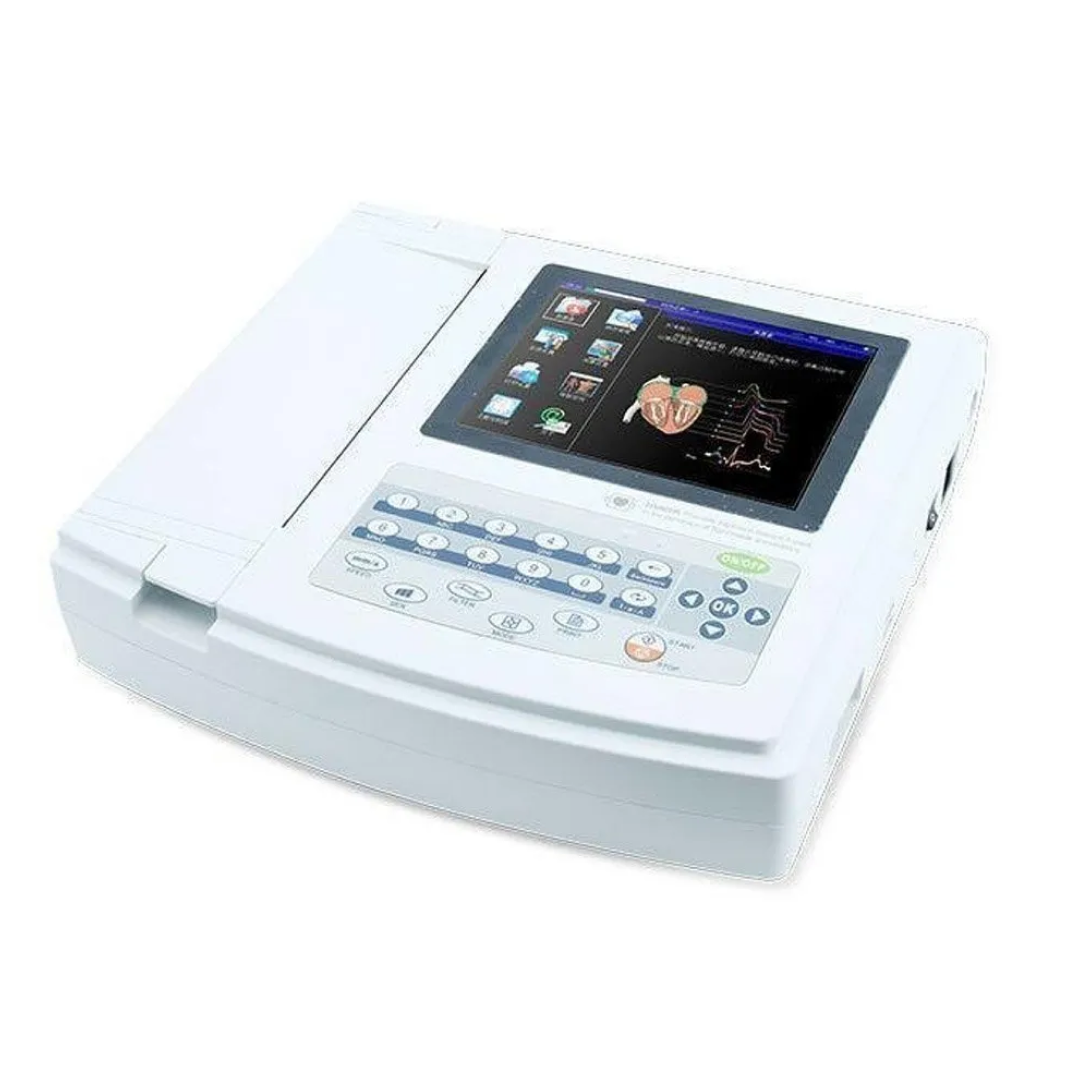

The CONTEC ECG1200G is a cutting-edge twelve-channel electrocardiograph, designed to meet the rigorous demands of professional cardiac diagnostics. This advanced device synchronously collects 12-lead ECG signals and provides high-quality waveform printouts, making it an indispensable tool for hospitals, cardiology clinics, and diagnostic centers. Its intuitive touch screen and comprehensive features ensure efficient and accurate patient assessment.

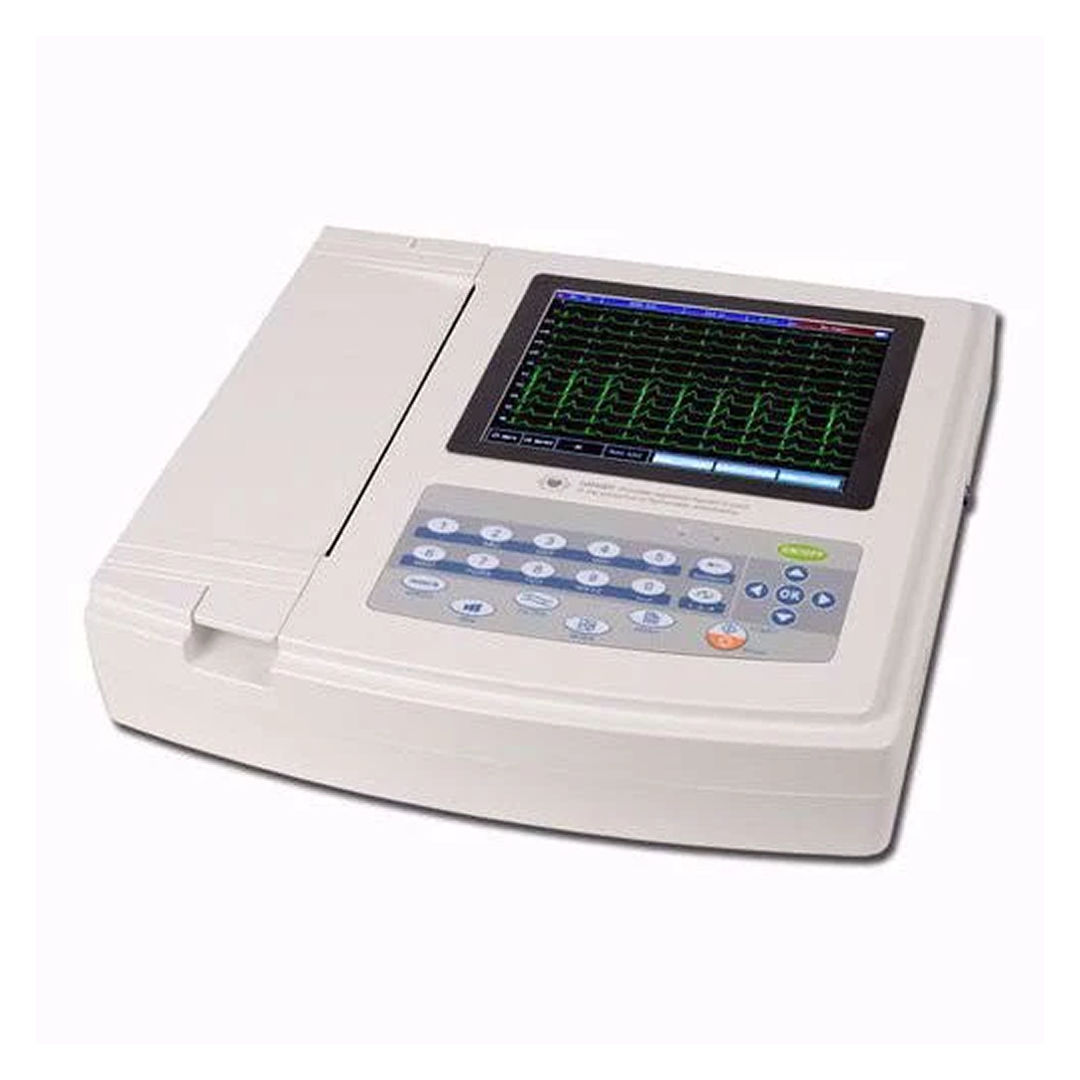

The ECG1200G boasts a high-resolution 800x480 color LCD display, allowing for the real-time review of 12-lead ECG waveforms and the immediate display of the diagnosis result. It features a robust digital filter system (baseline, AC, EMG) to ensure clear and interference-free ECG signals. With advanced auto-analysis and auto-diagnosis functions, the device provides reliable measurement results and diagnostic conclusions for standard ECG parameters, significantly aiding clinical interpretation.

Why Choose the Contec ECG1200G?

The Contec ECG1200G represents a leap in electrocardiograph technology, offering unparalleled precision, efficiency, and user experience. Its comprehensive diagnostic capabilities, robust design, and flexible data management make it an indispensable tool for healthcare providers dedicated to superior cardiac care.

Invest in the Contec ECG1200G for leading-edge cardiac diagnostics and improved patient outcomes.

Product Information

Key Features & Benefits:

  • Twelve Channel ECG Acquisition: Synchronously collects 12-lead ECG signals for a comprehensive view of cardiac activity.
  • High-Resolution Color LCD: 800×480 color LCD provides a clear and intuitive interface for real-time waveform display and diagnosis.
  • Advanced Digital Filtering: Features baseline, AC, and EMG filters to ensure clean, high-quality ECG waveforms.
  • Auto-Analysis and Diagnosis: Provides automatic analysis and diagnosis for routine ECG parameters (e.g., HR, P-R interval, QRS Duration, Q-T interval, Axis data).
  • Versatile Recording Modes: Supports Auto, Manual, and Rhythm recording modes, with adjustable paper speeds and sensitivity options.
  • Large Capacity Storage: Built-in memory can store up to 1000 cases, facilitating convenient review and statistics.
  • Dual Power Supply: Operates on both AC (100–240V) and DC power (14.8V, 3700mAh rechargeable lithium battery), supporting continuous work for extended periods.
  • Real-time Freeze Function: Allows freezing of ECG waveforms for easy observation and analysis.
  • USB Connectivity: Features USB interface for data transmission to PC, with optional ECG-Sync software for comprehensive data management.
  • Patient Information Management: Allows easy input of patient information using the touch screen and soft keyboard.

Technical Specifications (Highlights):

  • Input Way: Floating and defibrillation protection
  • Lead: Standard 12 leads
  • Sampling Frequency: 1000 Hz
  • Recording Way: Thermal printing system
  • Recording Paper: 210 mm (W) × 20 m (L) high-speed thermal paper
  • Dimensions: 334 mm (L) × 320 mm (W) × 85 mm (H)
  • Noise Level: ≤15 µVp-p
