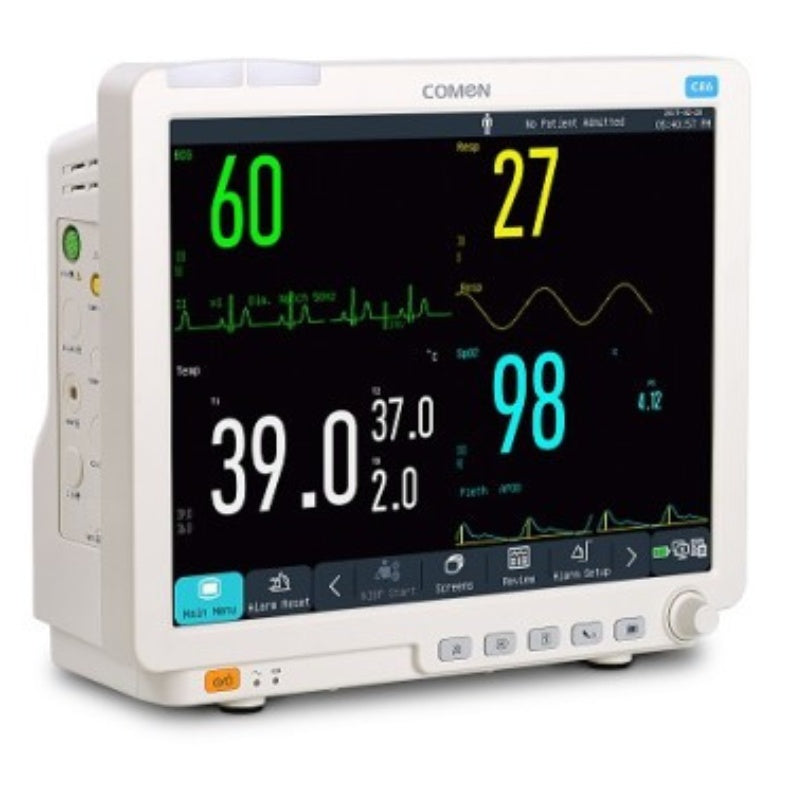

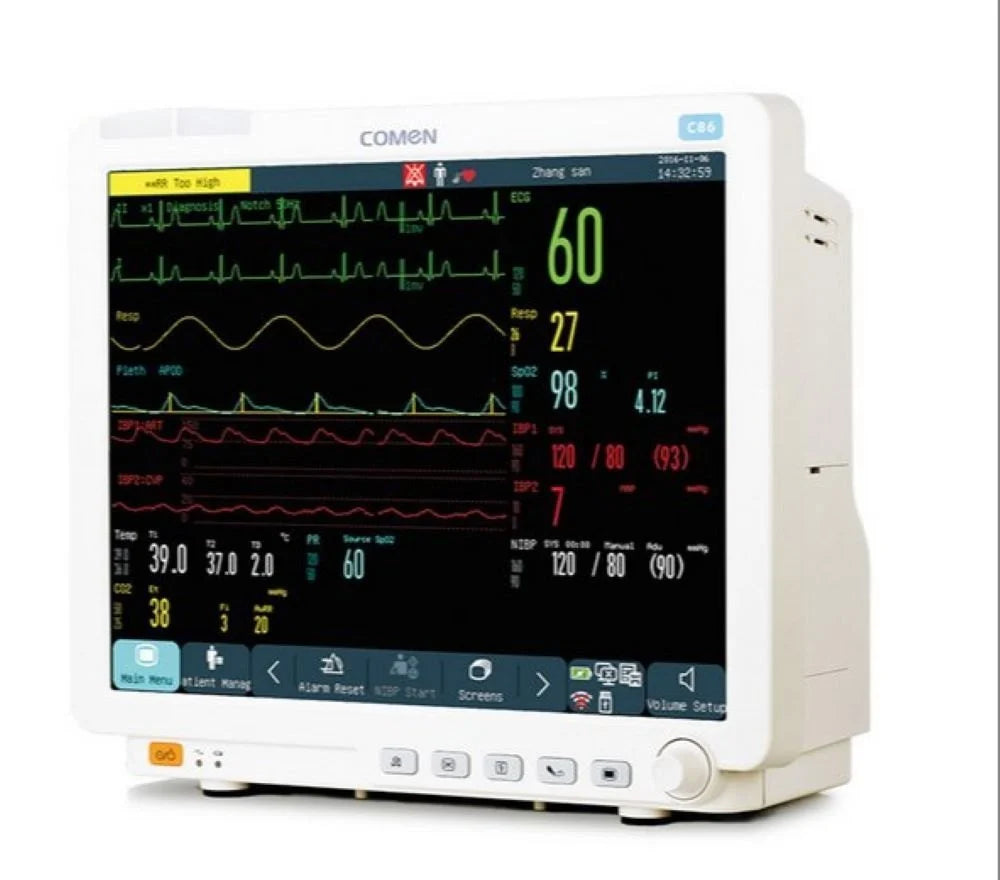

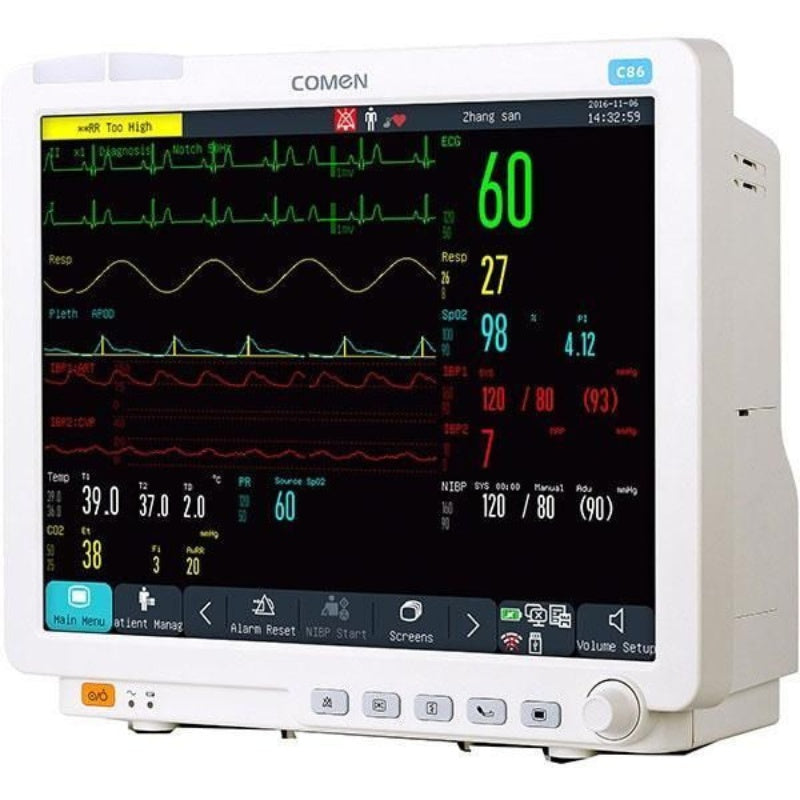

COMEN C86 Multi-Parameter Patient Monitor

Key Features & Benefits:

• Expansive 15" Color TFT Touch Screen: Navigate effortlessly with a responsive touch screen and trim knob, complemented by quick access keys. The large display supports up to 12 waveforms for a comprehensive overview of patient data.
• Comprehensive Standard Parameters:
  - ECG: Features CardioTec™ 5-leads ECG Analysis, with selectable 3-lead or 12-lead capabilities. Offers 16 types of arrhythmia analysis and ST detection from -2.0mV to +2.0mV.
  - Respiration: Thoracic impedance method with wide measurement ranges for adults and neonates/pediatrics.
  - SpO2: Includes Comen SpO2 as standard, with options for Nellcor SpO2 or Masimo SpO2 for superior accuracy in various conditions.
  - NIBP: Automatic oscillometric method with Manual, Automatic, and Continuous work modes, providing accurate Systolic, Diastolic, and Mean pressures across all patient types.
  - Temperature: Dual-channel monitoring (T1, T2, TD) with high accuracy.
• Extensive Optional Configurations: Customize your C86 with advanced modules including:
  - Dual IBP (Invasive Blood Pressure)
  - EtCO2 (Comen, Respironics, or Masimo options)
  - Cardiac Output (C.O.) via Thermodilution
  - Impedance Cardiography (ICG)
  - BIS (Bispectral Index) for anesthesia depth monitoring
• Built-in Thermal Recorder: For instant documentation of up to 3 waveforms.
• Intelligent Calculation Packages: Includes Drug & Hemodynamics, Ventilation, Oxygenation, and Renal calculation packages to aid clinical decision-making.
• Reliable Battery Backup: Provides up to 2.5 hours of continuous operation with a 2200mAh rechargeable Lithium-ion battery, fully recharging in just 3.5 hours.
• Seamless Networking & Connectivity: Connects to Central Monitoring Systems via wired or wireless options. Includes USB ports for data export and software upgrades, and a Nurse Call port.
• Enhanced Safety: Built to withstand electrosurgical interference and defibrillation. Features dual alarm indicators, power indicators, and QRS beep for immediate alerts.
• Robust Data Storage: Stores 500 groups of alarm events, 6 hours of wave recall, 2000 groups of NIBP recall, and 120 hours of trend graphs and tables, with power-off storage alarm protection.

Technical Specifications (Highlights):

• Display: 15" Color TFT Touch Screen, 1024x768 Resolution
• Dimensions: 349.1 mm × 302.6 mm × 108.5 mm
• Weight: 4.2 kg (with battery)
• Power Supply: 100-240V~, 50/60Hz ± 1Hz
• Operating Environment: Temperature 5−40°C, Humidity ≤93%
