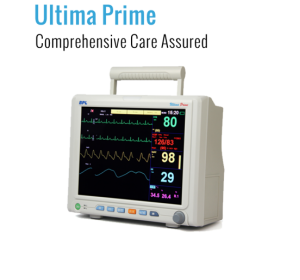

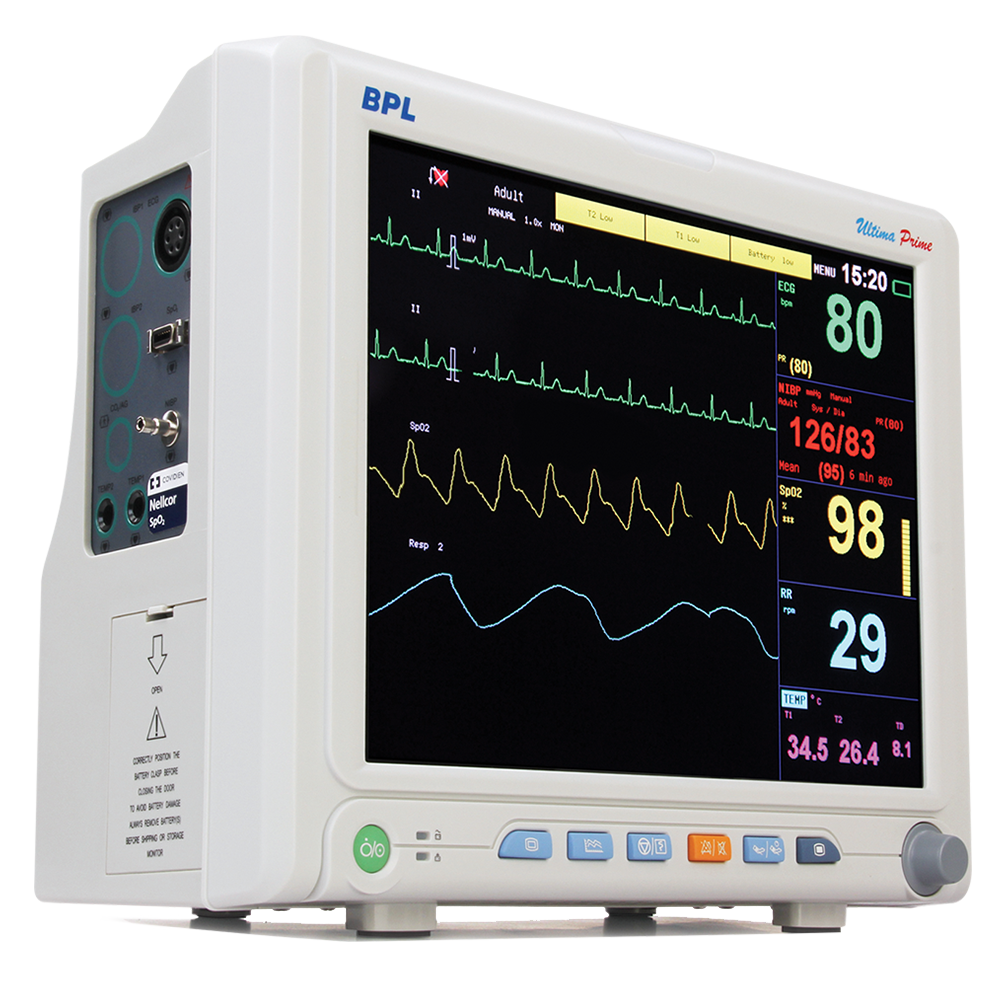

BPL Ultima Prime Multi-Parameter Patient Monitor - Advanced Patient Monitoring for Hospitals & Clinics

BPL Ultima Prime Multi-Parameter Patient Monitor - Advanced Patient Monitoring for Hospitals & Clinics

The BPL Ultima Prime Multi-Parameter Patient Monitor is a state-of-the-art solution designed to provide accurate and reliable patient data, essential for critical care and continuous monitoring in modern healthcare facilities. This advanced monitor features a high-resolution display, comprehensive parameter measurements, and seamless connectivity, making it an indispensable tool for medical professionals.

Key Features & Benefits:

• Exceptional Clarity: Experience the finest display with a high-resolution 12.1" TFT color display, offering crystal-clear visibility of patient data. An optional touch screen is available for intuitive navigation and control.
• Comprehensive Monitoring: Standard configurations include ECG (5-lead/3-lead optional), RESP, Nellcor SpO2 / Masimo SpO2 / Digital SpO2, NIBP, and TEMP, ensuring all vital parameters are meticulously tracked.
• Advanced Analytical Tools: Enhance your diagnostic capabilities with built-in functions such as drug dose calculation, HRV analysis, and hemodynamic calculation. The device also provides arrhythmia detection and ST analysis for critical cardiac insights.
• Extended Data Review: Access up to 168 hours of trend review, allowing for detailed historical data analysis and comprehensive patient progress tracking.
• Seamless Connectivity: Connect effortlessly to BPL Medius+ Central Nursing Station Software (wired or optional wireless) for centralized monitoring and improved workflow efficiency.
• Versatile Waveform Display: Monitor up to 10 waveforms simultaneously, providing a holistic view of patient physiology.
• Robust Battery Life: The non-touch model offers $\ge 60$ minutes of operating time on a full charge with a rechargeable lead-acid battery, extendable to over 120 minutes with an additional battery. Touch screen models feature a rechargeable Lithium-ion battery providing 2240 minutes (480 minutes with 2 batteries).
• Optional Parameter Expansion: Customize your monitor with optional parameters such as 2-IBP, ETCO2 (Main Stream/Side Stream), Multi-Gas/AGM, Non-invasive Cardiac Output, HL7 Output, and a Thermal Recorder to meet specific clinical needs.

Technical Specifications:

• Display: 12.1 inch Color TFT LCD Display (800x600 pixels resolution).
• Weight: 4.5 Kg.
• Dimensions: $318\times 264\times 152mm$.
• ECG:
  • Lead Mode: 5 Lead, 3-Lead (Optional)
  • Heart Rate Range: Adult: 10-300 bpm; Neonate: 10-350 bpm
  • ST Segment Range: $-2.0mV-+2.0mv$
• NIBP:
  • Method: Automatic Oscillometry
  • Cuff Pressure Range: Adult: 10-270mmHg; Child: 10-235mmHg; Neonate: 10-135mmHg
  • Auto Measurement Intervals: 1, 2, 3, 4, 5, 10, 15, 20, 30, 45, 60, 90 Minutes; 2, 4, 8 Hours
• SpO2 Options:
  • Nellcor SpO2: Saturation Range: 1-100% (Accuracy: $\pm 2$ digits at 70-100% for Adult). Pulse Rate Range: 20-300 bpm.
  • Masimo SpO2: Saturation Range: 1-100% (Accuracy: $\pm 2\%$ at 70-100% without motion for adult/pediatric). Pulse Rate Range: 25-240 bpm.
  • Digital SpO2: Saturation Range: 1-100% (Accuracy: $\pm 2\%$ at 70-100%). Pulse Rate Range: 25-250 bpm.
• Temperature: Measurement Range: 0∘C−50∘C (Accuracy: ±0.1∘C at 25∘C−45∘C). Compatible with YSI 400 Series.
• Environmental Conditions: Temperature: 0∘C−45∘C, Relative Humidity: $<80\%$, Atmospheric Pressure: 86 kPa-106 kPa.

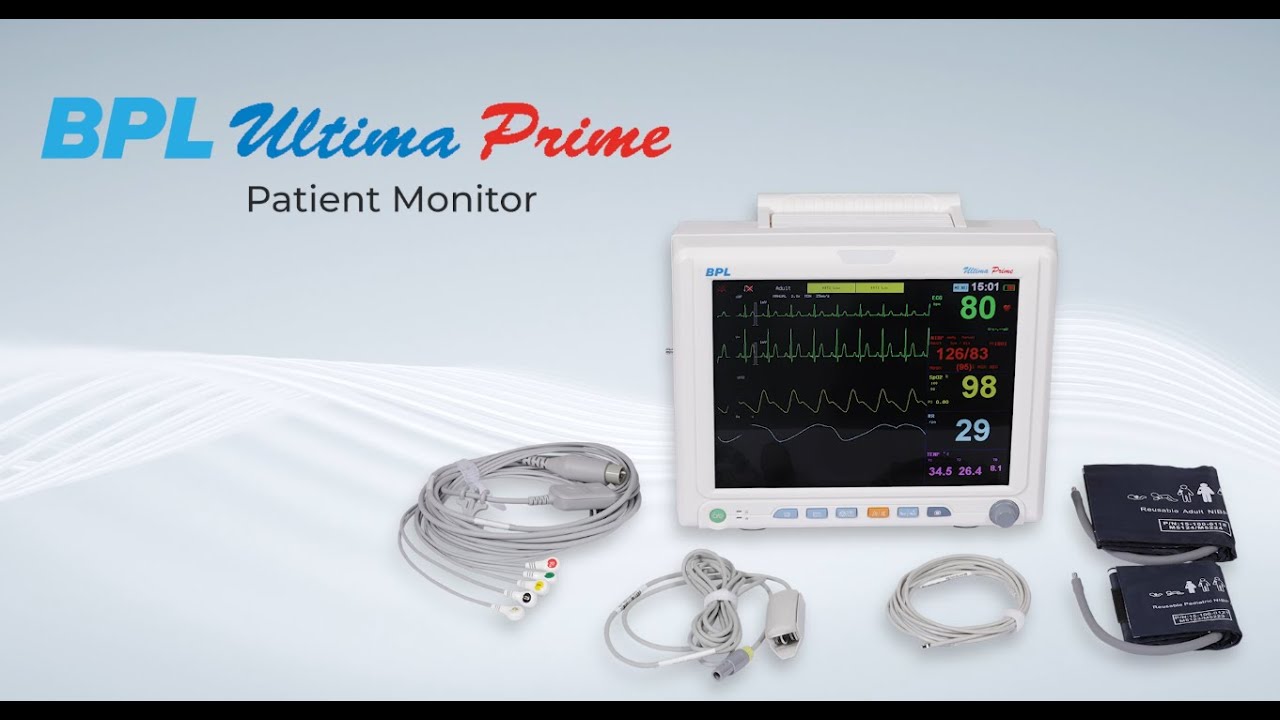

Included Standard Accessories:

• ECG Patient Cable (5 lead) - 1 No.
• Disposable Electrodes - 1 Packet
• NiBP Cuff - 3 Set
• Temperature Probe - 1 No.
• SpO2 Adult Sensor Probe - 1 No.
• Power Cord - 1 No.
• Rechargeable Battery - 1 No.

The BPL Ultima Prime is designed to empower healthcare providers with accurate, real-time patient insights, fostering happier living every day.

About BPL Medical Technologies:

BPL Medical Technologies Private Limited is an ISO 13485:2016 certified company dedicated to providing high-quality medical equipment. With a commitment to innovation and customer satisfaction, BPL delivers reliable solutions for healthcare professionals worldwide.

Order your BPL Ultima Prime Multi-Parameter Patient Monitor today and elevate your patient care standards!
