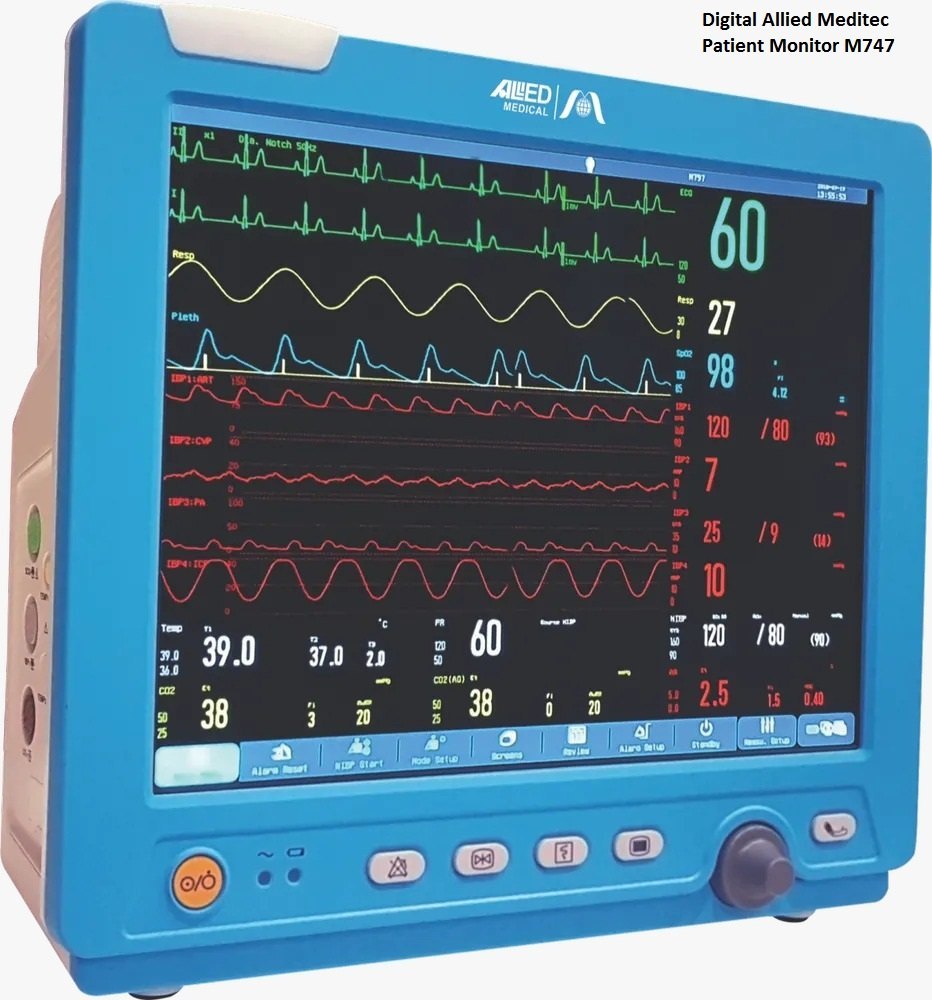

ALLIED MEDITECH M747 Multi-Parameter Patient Monitor - Reliable & Versatile Monitoring

ALLIED MEDITECH M747 Multi-Parameter Patient Monitor - Reliable & Versatile Monitoring

Elevate your patient care standards with the ALLIED MEDITECH M747 Multi-Parameter Patient Monitor. Designed for adult, pediatric, and neonatal patients, this pre-configured, lightweight, and sturdy monitor offers flexible parameter configurations to suit diverse clinical environments. Its robust features and optional upgrades make it an ideal choice for continuous and accurate vital sign monitoring in hospitals, clinics, and emergency settings.

Key Features & Benefits:

• Vibrant 12.1" LED Screen: Provides clear and comprehensive display of patient data.
• Flexible Parameter Configuration: Easily adapts to different clinical needs.
• Long-lasting Battery Backup: Equipped with a rechargeable Li-ion battery offering up to 5 hours of operation.
• Extensive Data Review: Access graphical and tabular trends for up to 168 hours for in-depth analysis.
• Enhanced Safety: Features Defibrillation Interface & Cautery Protection for secure operation.
• Comprehensive Monitoring Parameters:
  • ECG: Supports 3-lead, 5-lead, and optional 12-lead configurations with automatic PACE detection and high CMRR for clear signals. Offers measurement and alarm range for heart rate from 15-300 bpm (Adult/Paed) and 15-350 bpm (Neo Ped).
  • SpO2: Utilizes Self/Masimo method for accurate oxygen saturation readings (1-100% measuring range) and pulse rate (20-300 bpm), even in low perfusion conditions.
  • NIBP: Oscillometric method with Manual, Auto, and Continuous modes. Provides accurate Systolic, Diastolic, and Mean pressure measurements for all patient types with dual over-pressure protection.
  • Respiration: Impedance method with wide measurement and alarm ranges (0-120 rpm for Adult, 0-180 rpm for Neo/Ped) and adjustable gain. Features apnea alarm (10-60 seconds).
  • Temperature: Dual-channel monitoring (1 standard, 2 optional) with a measuring range of 0−50∘C and high accuracy.
• Multiple Display Modes: Choose from Standard Monitoring, Large Font Intensive Care, Trend Graph/Monitoring Co-Display, Bed to Bed View, OxyCRG Dynamic View, and Drug Dose Calculation Interface.
• User-Friendly Alarms: Features user-selectable priority alarms (Red, Yellow, Orange color-coded) for immediate attention to changes in patient status.

Optional Features for Expanded Capabilities:

• Touch Screen Display
• Dual IBP (Invasive Blood Pressure): Up to 4 channels for comprehensive static and dynamic pressure monitoring (ART, PA, CVP, RAP, LAP, ICP, P1, P2).
• EtCO2 (End-tidal Carbon Dioxide): Mainstream or Sidestream options using Infrared Absorption Technique, measuring CO2 and AwRR.
• In-built Thermal Printer
• Mounting Solutions: Wall Mount, Mobile Trolley (optional accessory), and Bed Rail Mount.
• Central Monitoring System Connectivity: Wired/Wireless options available for seamless integration.

Technical Specifications (Highlights):

• Display: 12.1" LED Screen.
• Power Supply: AC 100V-240V, 50/60Hz.
• Battery Operating Time: 5 hours (Built-in Li-ion).
• Environmental Conditions: Operational Temperature 0∘C−40∘C, Humidity 15%-80%, Atmospheric Pressure 700kPa-1060kPa.

The ALLIED MEDITECH M747 Monitor is a powerful tool designed to support healthcare professionals with accurate, real-time data and flexible options for optimized patient monitoring.

Upgrade your facility's monitoring capabilities. Order your ALLIED MEDITECH M747 Patient Monitor today!
