Description

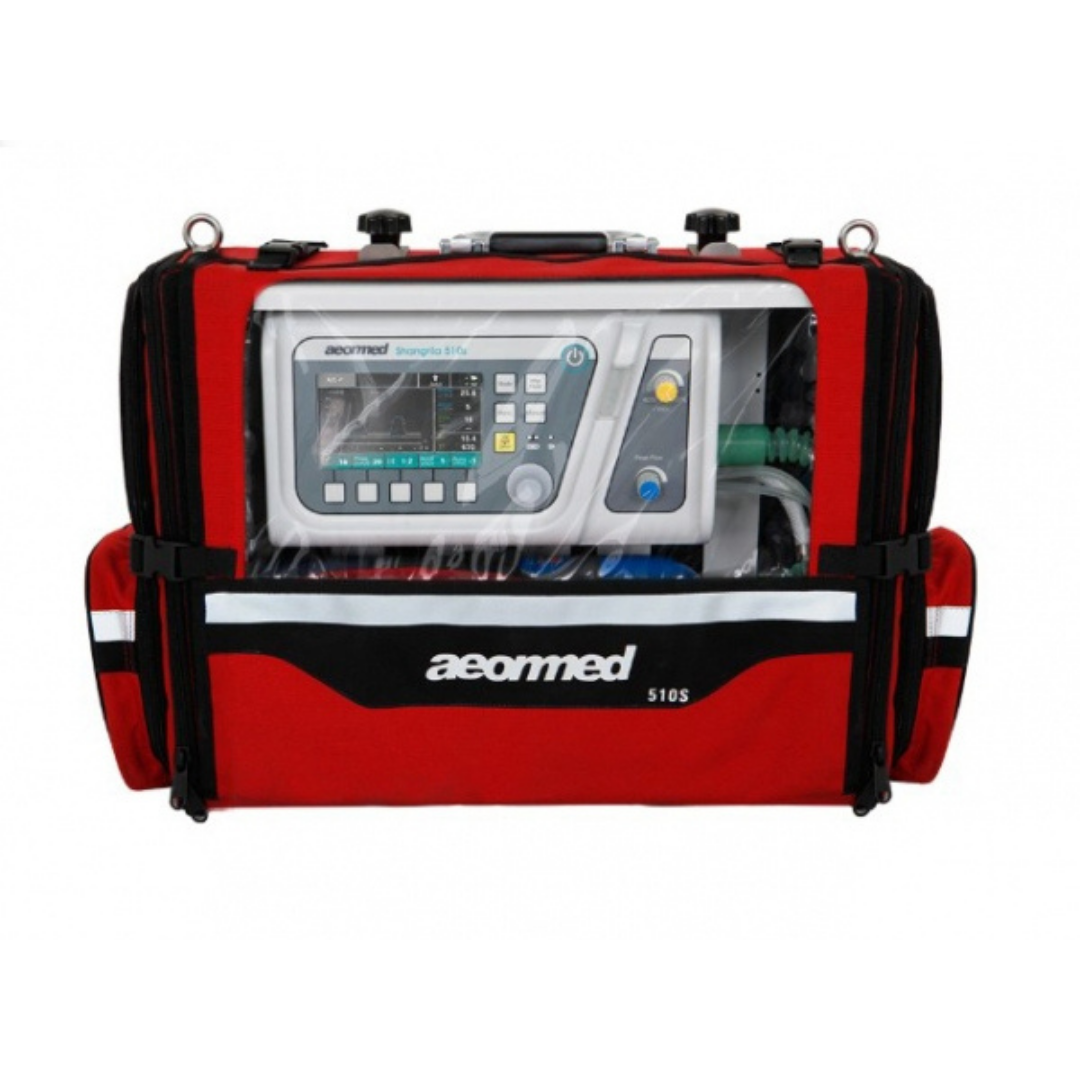

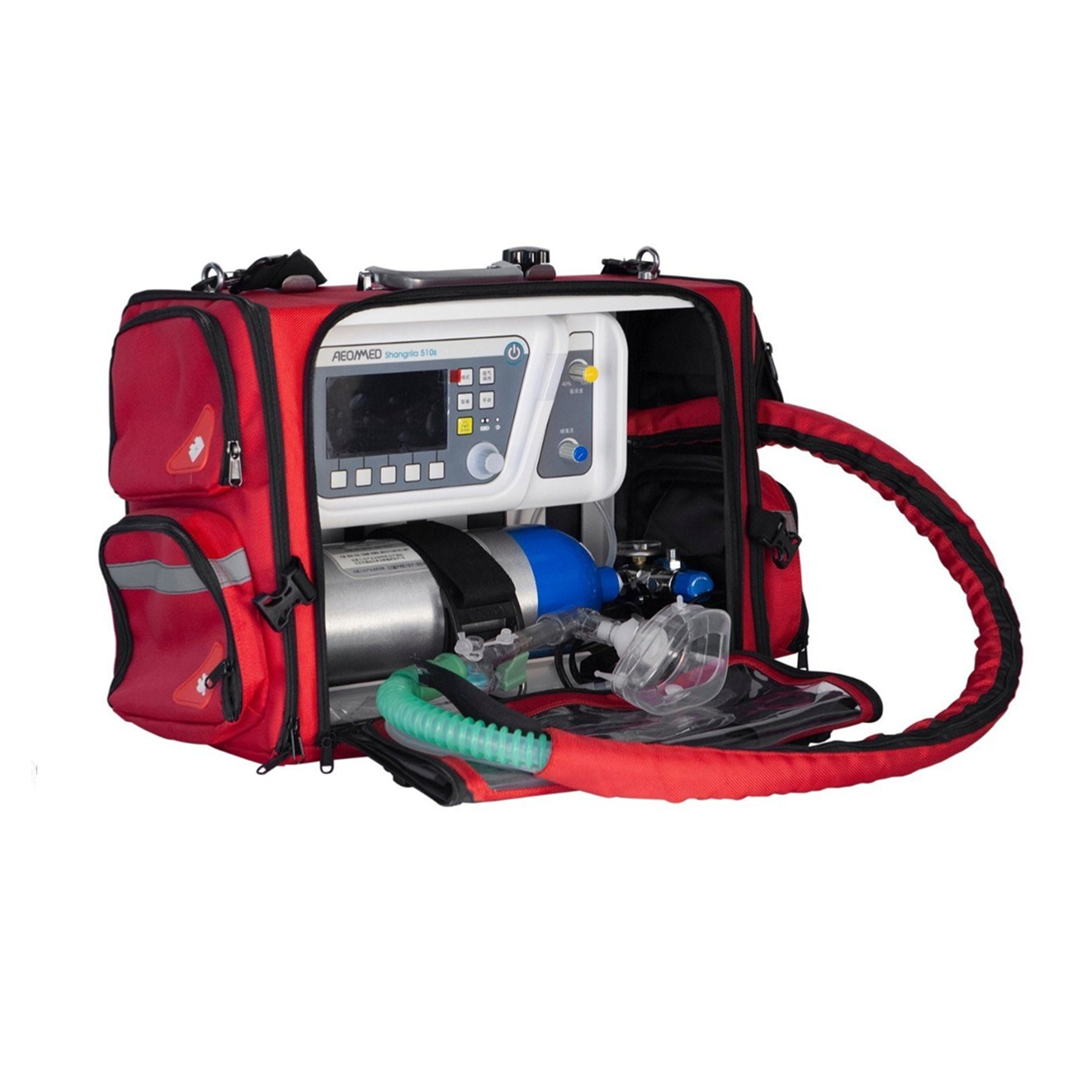

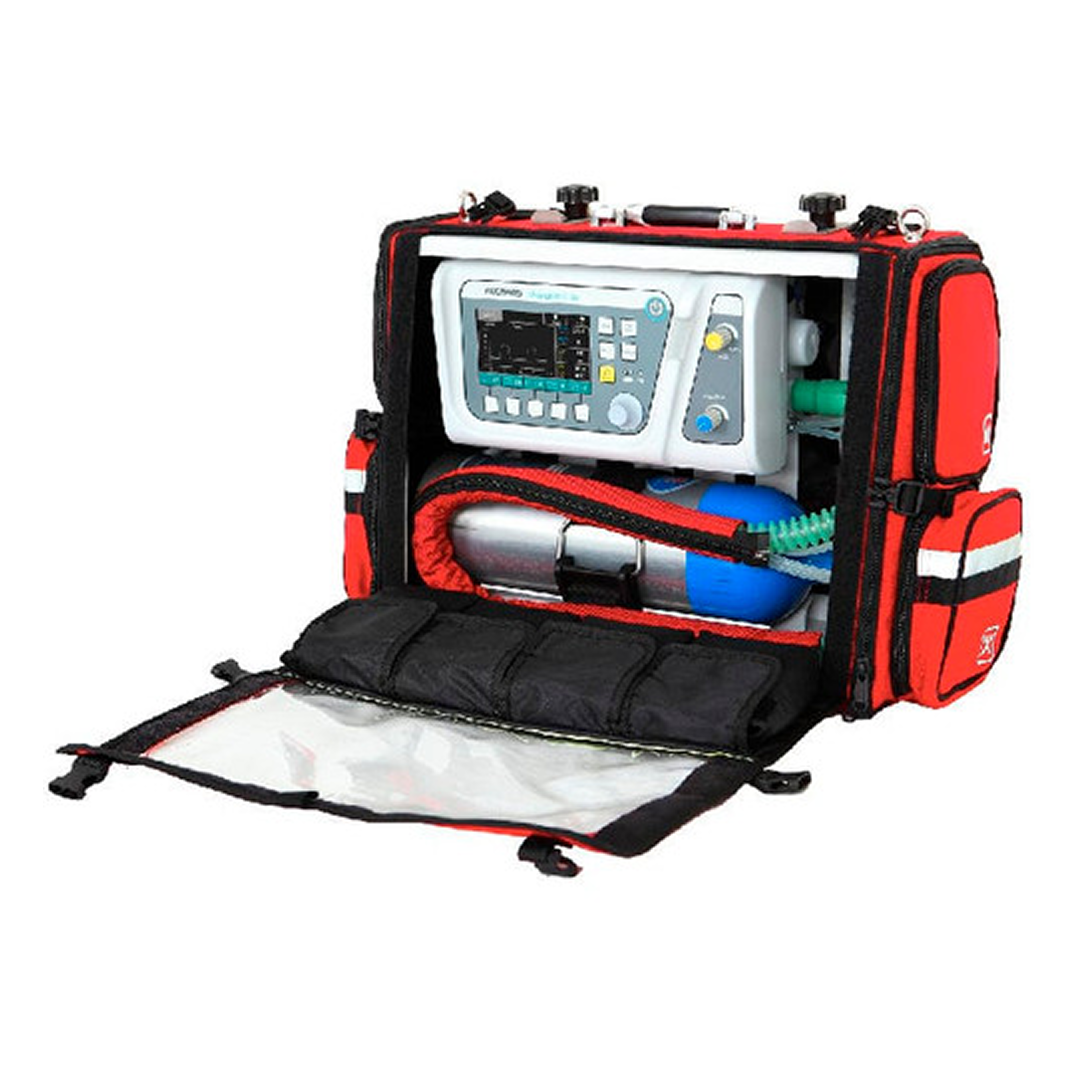

AEONMED Shangrila 510 Transport Ventilator

The Shangrila 510 is a compact, lightweight, and highly reliable emergency transport ventilator, designed for use in critical care transport situations. Pneumatically driven and electronically controlled, it offers intuitive operation and robust performance, making it ideal for both hospital and field environments.

Whether in the ICU, ambulance, or during patient transfers, the Shangrila 510 ensures critical respiratory support when and where it’s needed most.

Product Information

Key Features:

  • Ventilation Modes: A/C, SIMV, SPONT, Manual, Sigh
  • Tidal Volume Range: 0 – 1500 ml
  • Respiration Rate: 4–99 bpm (A/C), 1–40 bpm (SIMV)
  • FiO₂ Range: 48% – 100%
  • Pressure Trigger Sensitivity: -20 to 0 cmH₂O
  • PEEP: 5 – 20 cmH₂O
  • Real-Time Waveform Monitoring: Pressure-Time
  • Alarms: High/low pressure, apnea, battery low, AC power failure, O₂ deficiency, and more

Technical Specifications:

  • Power Supply: AC 100–240V, 50/60Hz, ≤65VA
  • Gas Supply: O₂ (0.28–0.6 MPa)
  • Dimensions: 175 x 170 x 300 mm
  • Weight: 3.5 kg
  • Noise Level: ≤65 dB(A)

Highlights:

  • First CE-marked emergency transport ventilator in China
  • Official emergency ventilator for the 2008 Beijing Olympic Games
  • Deployed in over 120 countries worldwide
  • Flexible power options including built-in rechargeable battery
  • All-in-one parameter setting for ease of use
